1.2  Material

     Galvanized steel, square-locked core



     Pvc Coated



1.3 Features



          Galvanized steel, square-locked, zinc colour, self colour



          Meets National Electrical Code 350 and conform to UL requirement



          IP rating IP50



          Excellent flexibility



         Good mechanical strength



         Inherently low fire hazard



         Good Absorption of motion and vibration



         EMI screen



         Temperature range from -50oC to +300oC



         Nickel plated brass fittings



         Galvanized malleable iron fittings



         Stainless steel fittings





1.4 Applications





              General wiring for OEM applications



               Low fire hazard applications



              Underfloor wiring of office buildings





Special Applications:

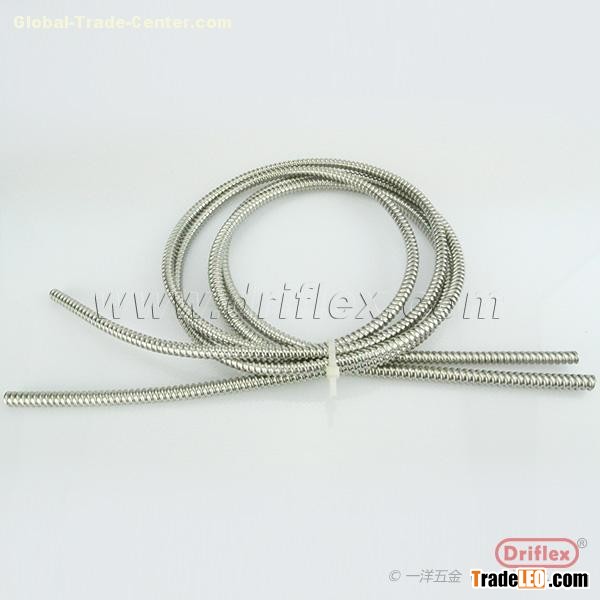

Stainless Steel (SUS304, SUS 430)  and Brass type of FM flexible conduits are available for applications,



such as instrumentation and security, etc.



  Pipe without PVC coated



1.5 Specifications






PartNo

Nominal Size
ISO (mm)

Nominal Size
US (inches)

I.D. (mm)

O.D (mm)

Min. Bend
Radius (mm)

Length
(M/coil)


FM-10UL 16 3/8" 9.52- 9.96 14.22- 15.49 51 50
FM-11UL 20 1/2" 15.88- 16.38 21.84 - 23.37 76 50
FM-12UL 25 3/4" 20.62-21.21 26.54 - 28.07 102 50
FM-13UL 32 1" 25.40 - 26.42 30.02 - 35.05 127 50
FM-14UL 40 1-1/4" 31.75- 33.02 39.37 - 41.40 159 30
FM-15UL 50 1-1/2" 38.10 - 40.01 46.99- 49.53 190 30
FM-16UL 63 2" 50.80 - 52.83 59.69 - 62.23 254 20
FM-17UL 75 2-1/2" 63.54 72.64 - 77.72 318 15
FM-18UL 90 3" 76.20 85.34- 90.42 381 15
FM-19UL 100 4" 101.60 110.74 - 115.82 508 10



1.6 Suitable fittings



Model: mo
Description:



Suitable fittings:



LT type of fittings - IP66 (liquid-tight)
