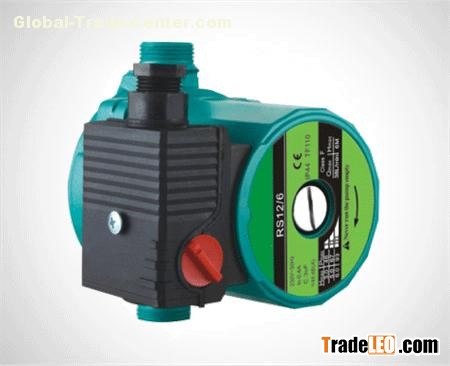

Introduction

1 Suitable for medium: hot water and ethanol maximum ratio of 1:1

2 Performance: Liquid temperature range -10 ℃ - +110 ℃ Maximum working pressure 10bar

3 Ambient temperature: not higher than 40 ℃
4 Power :1-230V, frequency 50Hz
5 Motor: Protection class IP44 Insulation class F
6 Material: cast iron, PP, ceramics
7 Mounting position: Shaft horizontal mounting

8 pump settings: single-phase pipeline pump 3 files manually controlled single-phase motor is

not overloaded casting pump length 180 mm 130 mm
