Specifications
fr Cu PVC Insulated Control Cable:
1:GB9330(IEC227) standard
2:Voltage:450V/750V (0.6/1KV) or below
3:copper or aluminum,

2013 fr Cu PVC Insulated Control Cable
Specifications
Control Cable Power Cable
Cable Professional manufacture
Fast delivery time
IEC,BS,ASTM
OEM control cable

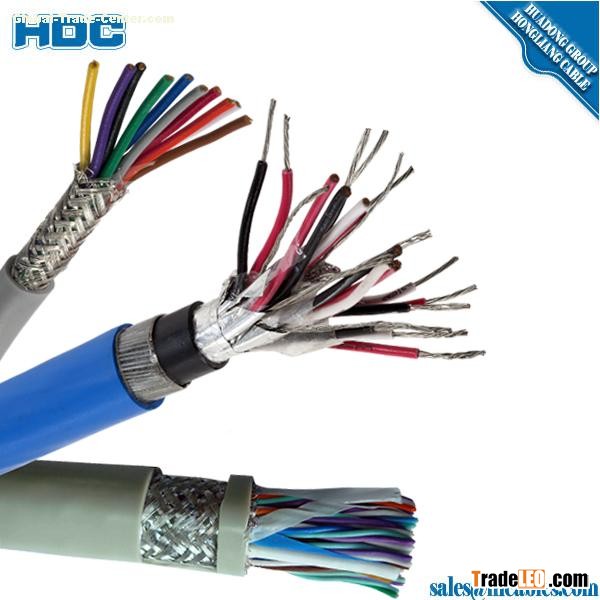

450/750V Copper core PVC insulated PVC sheathed control cable
1. Standard: GB9330(IEC227), also can do by standard of ASTM,BS,DIN and AS/NZS or other standards as request.
2.Rated Voltage:450/750V(0.6/1KV) or below
3.Construction:
Conductor:Copper or Aluminium
Insulation: PVC/XLPE /Silicon rubber
Inner sheath:PVC or PE
Armoured:Galvanized steel tape or galvanized steel wire
4.Characters:
a.MAX Long-time operating temperature of PVC insulated control cable is 70°C,XLPE insulated control cable is 90°C
b.Installing temperature of cable should not be less than 0°C
c.Permissible Bending radius of cable: non-armoured cable should not less than 6 times.Armoured or copper tape screen should not be less than 12 times.The soft screen cable should not be less than 6 times.
5.  Application:
Applied for connections of electric equipment in controlling,monitoring loop and circuit protecting at Rated AC voltage 450/750V or less than.
Power plants,Factories,Mined indoor,Ports and Petrochemical enterprises,Pipeline etc. Stationary Places.
