Packaging & Delivery
Packaging Detail:wooden drum or upon clients requirement
Delivery Detail:15 days reach departure port for MOQ quantity

Specifications
0.6/1kv 70 C PVC insulated & sheath
CVV, CVV-S cable
IEC 60502 standard
and other types NYY,VVR,VVF,VCT,NYCY

PVC insulation PVC sheath CVV control cable manufacturer and exporter

Type: CVV cable

Detail: 600V 70 degree PVC insulated and sheathed control cable.

APPLICATION : Super visory electrical equipment, station control circuits. Outdoor, suitable installation in the wet or dry cable trenches.

CLASSIFICATION : Maximum conductor temperature 70º C, Circuit voltage does not exceed 600 volts.

TESTING VOLTAGE : 3500 volts

STANDARD : IEC 60502

OPTIonAL : Filler Binding tape

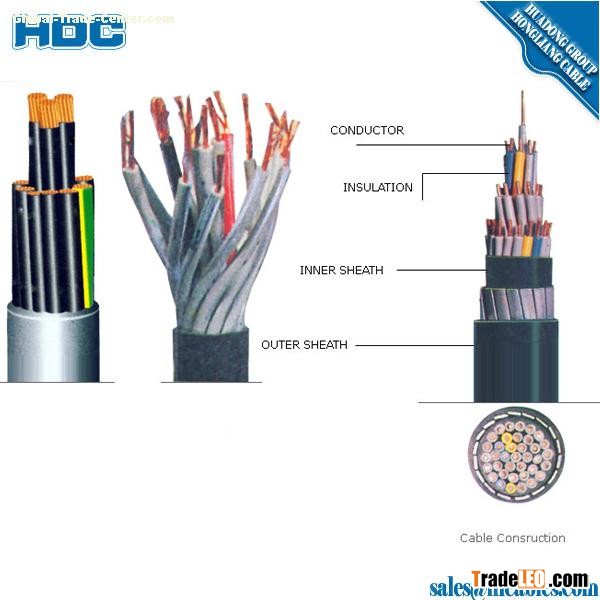

ConSTRUCTION : NUMBER OF CORE : 2-48 cores

ConDUCTOR : Solid stranded copper, sizes 1.5 mm2 up to 300 mm2

ConSTRUCTION ConDUCTOR : Annealed copper conductor (Optional : Solid & Standed or Flexible concentric standed.)

INSULATION : Polyvinyl chloride(PVC)
2- 4 cores - Black Red Blue and Yellow
More than 4 cores : Black colour with marking core numbers
