Packaging & Delivery
Packaging Detail:Standard export wooden ,wooden steel drums or according to the customers'requirements
Delivery Detail:10 - 15 days normally

Specifications

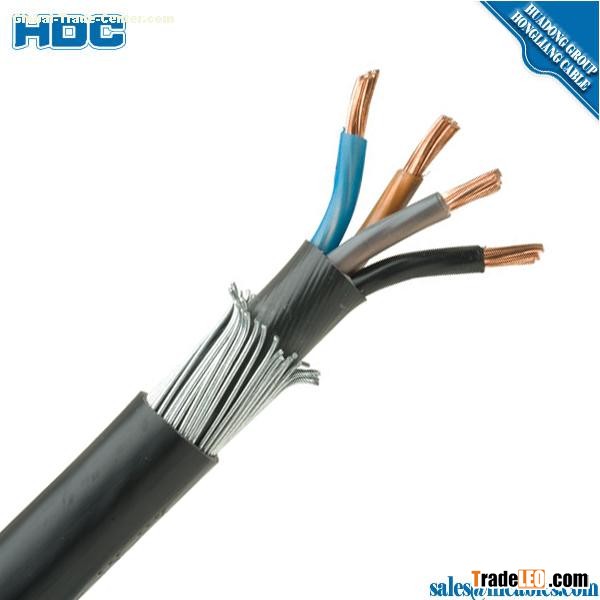

1 NYY XLPE insulated control cable12/20kv
2 Armour:Steel wire
3 Sheath:PVC

                                             NYY  Control cable 12/20KV

Insulation:XLPE
Armour:Steel wire
Sheath:PVC
Standard:IEC ,ISO9001-2000


1. XLPE power cable work under 12/20KV, with 50Hz AC, can be set in tunnels, underground, pipeline ,building site etc.
2. Conductor: copper or aluminium
3. Section area: 1mm2---- 400mm2
4. Core No.: 1, 2, 3, 4, 5,3+1,4+1,3+2
5. Insulation: XLPE
6. Sheath:    PVC
7. Armour:    Stainless steel tape or not
8. Operation temperature: ≤90oC
9. Installation temperature: ≥0oC
10. Bending radius: A, Common bending radius:
                              a. ≥20D   (1and 2cores)
                              b. ≥15D   (3 cores)
                              c. ≥15D   (2 cores with armour)
                              d. ≥12D   (4,5,3+1,4+1,3+2 cores with armour)
                              D= outer diameter

                             B, Bending radius for the section which near the junction and connector:
                              a. ≥15D (1 and 2 cores)
                              b. ≥12D (3, 4,5,3+1,4+1,3+2 cores)
                              c. ≥12D (2 cores with armour)
                              d. ≥10D (3, 4, 5, 3+1,4+1,3+2 cores with armour)
10. For the armouring of single-core cables, non-magnetic materials shall be adopted.
11. They can be made into flame retardant and fireproof type.
12. They can be made according to customers' requirements.
