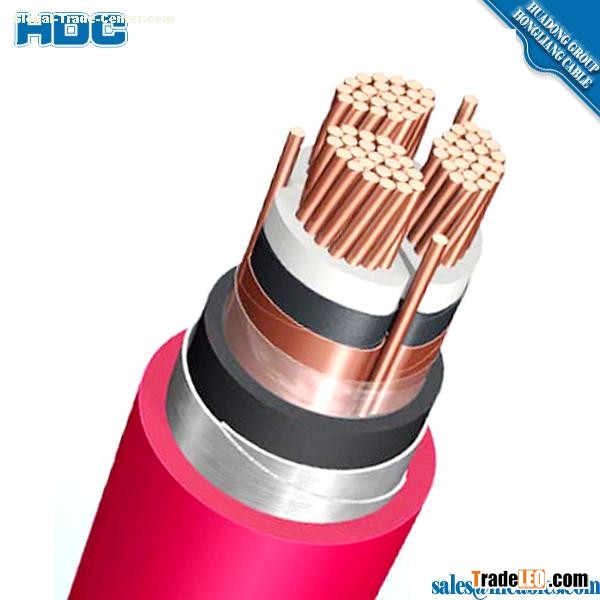

xlpe cable Power Cable:

1). specification: Copper or aluminium conductor for single core or multi-core; XLPE or PVC insulated; STA(steel tape armoured)or SWA(steel wire armoured); PVC sheathed power cable.

2). high voltage power cable Voltage: 0.6/1kV, 1.8/3kV, 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV, 18/30kV, 21/35kV, 26/35kV

3).Nominal cross-sectional areas: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2

4). ABC CABLE Application: it is used in indoors,  tunnel, cable trench, power station and electric power transmission.

Application:

    The XLPE insulated power cable is used in electric transmission and distribution system operating in vertical section, indoor, tunnels, mines. It was widely used in crowded public places such as  high-rise building, large-rise library, gymnasium, station,  subway, underground shop, etc. The XLPE insulated power cable not only has excellent electrical performance, mechanical performance. heat-resistant  & anti-aging performance, environment resistant character & chemical-corrosion resistant performance ,single structure, light weight,  without restriction by laying fall, but it also has high temperature(90℃） for long time.

Standard:

We produce these cables according to standard GB12706( equivalent to IEC60331), as well as BS, DIN and other international standards. In additional, we can also produce the low-smoke free halogen, Flame-retardant  cables, or others  according to customer request.
