Medium voltage power cable underground Specifications

The power cable Medium voltage power cable underground

1. Standards

The Products are mainly complying with CCC standard, also can be produced according to OEM requirements and others standard.

2. Voltage

Voltage grade is up to 35KV,

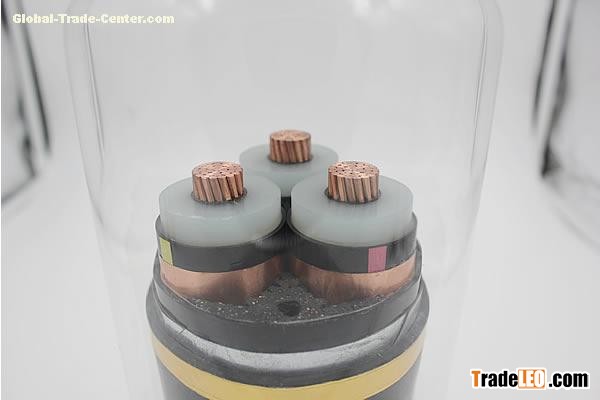

3. Construction

Copper or aluminum conductor

Copper tape sheild

XLPE insulated Medium voltage power cable

Steel wire or steel tape or copper tape armoured

PVC sheath Medium voltage power cable

4. Working conditions

Long-time operating temperature is 90 degrees.

In short circuit, conductor highest temperature should be not more than 250 Degrees.

5. Laying conditions

For laying underground with large different altitude, be able to bear external machanical force and moderate pulling force.
