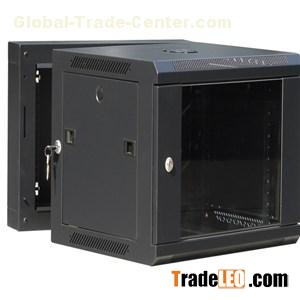

CL-DWM-CWall mounted Cabinet double section with back box (6U)Description:The Double section provides an easy access to the cabinet to the rear of all mounted cabinets.A swing frame construction adds to the flexibility of operation and maintenance.Product detailsFeature:Welded main frame, stable and strong structureCompatible with 19" standard network equipments;Wall mounting installation with backboard or standing with castor ;Toughened glass front door with over 180 turning degree;Removable side panel, easy to install and maintain (lock optional);Cable entry on the top cover and bottom panel with knock-out plate, optional brush panel;L-shaped mounting profile, easy to adjustable on the mounting rail;Fan cutout on the top cover, easy to install fan;Flat packing, easy to install, about 1/3 volume of assemble packing;Standard:Comply with ANS/EIA RS-310-D, IEC297-2, DIN41497 PART1, DIN41494 Part 7, GB/T3047.2-92 Standard;Material:SPCC quality cold rolled steel Thickness: Mounting profile: 1.5mm; other: 1.2mm;Loading Capacity:Static loading: 60kgSurface finish:Degreasing, pickling, phosphoric, powder coated;Wall Cabinet showWall Cabinets warehouse
