Brand:-
Model:-
MOQ:-0 -
Send Inquiry

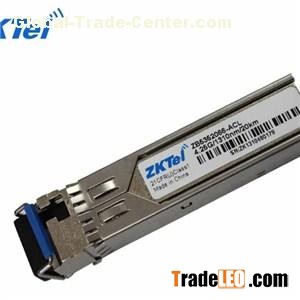

ZKTel's BIDI 4G series is small form factor pluggable module for 4x/2x/1x Fibre Channel and 1000base-BX Gigabit Ethernet single fibre communications. It is with the SFP 20-pin connector to allow hot plug capability. The transmitter section uses class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.Features• Fibre Bi-Directional SFP Optical Transceiver• Up to 4.25 Gb/s• Compliant with Fibre Channel FC-PI 400/200/100• Compliant with IEEE 802.3ah-2004 1000base-BX• Simplex LC Connector or SC connector• AC/AC Coupling according to MSA• Single 3.3 V Power Supply• RoHS Compliant• 0 to 70C, -10 to 85C or -40 to 85C Case Operation Temperature Ranges• Class 1 Laser International Safety Standard IEC 60825 Compliant.table{ border-collapse:collapse;}.table td, .table th{ border:1px solid #cdcdcd; padding:5px;} Package Part No. Data Rate Range Wavelength Optical Comp onents Distance Range Connector Case Temp. DDM Appli cation BIDI SFP ZB535M166-Dxx 4.25 Gbps 1310nm/ 1550nm FP/PIN 100m LC/SC Com./Ind. D FC BIDI SFP ZB553M166-Dxx 4.25 Gbps 1550nm/ 1310nm FP/PIN 100m LC/SC Com./Ind. D FC BIDI SFP ZB5350566-Dxx 4.25 Gbps 1310nm/ 1550nm FP/PIN 5km LC/SC Com./Ind. D FC BIDI SFP ZB5530566-Dxx 4.25 Gbps 1550nm/ 1310nm DFB/PIN 5km LC/SC Com./Ind. D FC BIDI SFP ZB5351066-Dxx 4.25 Gbps 1310nm/ 1550nm DFB/PIN 10km LC/SC Com./Ind. D FC BIDI SFP ZB5531066-Dxx 4.25 Gbps 1550nm/ 1310nm DFB/PIN 10km LC/SC Com./Ind. D FC BIDI SFP ZB5352066-Dxx 4.25 Gbps 1310nm/ 1550nm DFB/PIN 20km LC/SC Com./Ind. D FC BIDI SFP ZB5532066-Dxx 4.25 Gbps 1550nm/ 1310nm DFB/PIN 20km LC/SC Com./Ind. D FC BIDI SFP ZB5353066-Dxx 4.25 Gbps 1310nm/ 1550nm DFB/PIN 30km LC/SC Com./Ind. D FC BIDI SFP ZB5533066-Dxx 4.25 Gbps 1550nm/ 1310nm DFB/PIN 30km LC/SC Com./Ind. D FC BIDI SFP ZB5354066-Dxx 4.25 Gbps 1310nm/ 1550nm DFB/PIN 40km LC/SC Com./Ind. D FC BIDI SFP ZB5534066-Dxx 4.25 Gbps 1550nm/ 1310nm DFB/APD 40km LC/SC Com./Ind. D FC BIDI SFP ZB5111166-Dxx 4.25 Gbps CWDM/ CWDM DFB/PIN 11dB LC/SC Com./Ind. D FC BIDI SFP ZB5111866-Dxx 4.25 Gbps CWDM/ CWDM DFB/PIN 18dB LC/SC Com./Ind. D FC BIDI SFP ZB5112466-Dxx 4.25 Gbps CWDM/ CWDM DFB/APD 24dB LC/SC Com./Ind. D FC
