Standard of Product

The U-type cables are manufactured according to the standard of GB 12972-2008,while M –type cables are manufactured according to MT818-1999 and Q/1320282DCE037-2003, at the same time, they are also can be manufactured according to the standard of IEC, BS, DIN and AEIC.

Applications

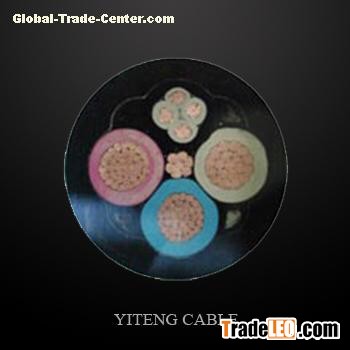

Flexible rubber-sheathed cables for mining purposes AC rated voltage up to and including 6/10KV are suitable for mining purposes power device with moring installation.

Operating Characteristics

Rated voltage Uo/U: 380/660V 300/500V、660/1140V、1.9/3.3KV、3.6/6KV and 6/10KV.

Max. permissible operating temperature of the conductor: 65℃.

Min. permissible operating temperature of the conductor: -35℃.

The bending radius of cable should not be less than 6 times of the cable’s OD.

Cable TYPES Cable Designation

U

UY

MY

flexible cable for movable mining purposes

UP

UYP

MYP NR/SBR rubber insulated(flame-retardant grade)neoprene(CR) rubber sheathed flexible screened cable for  movable mining purposes

UC

MC NR/SBR rubber insulated(flame-retardant grade)neoprene(CR) rubber sheathed flexible coal cutter cable

UCP

MCP

UCPQ NR/SBR rubber insulated(flame-retardant grade)neoprene(CR) rubber sheathed flexible  coal cutter screened cable

UZ

UZP

MZ MZP NR/SBR rubber insulated(flame-retardant grade)neoprene(CR) rubber sheathed drill cable for mining purpose

UYQ

MYQ NR/SBR rubber insulated(flame-retardant grade)neoprene(CR) rubber sheathed flexible light –duty cable for  mining purpose
