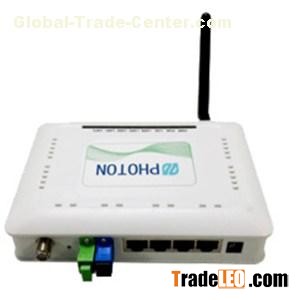

Photon Broadband Technology Co.,Ltd is one of the leading China 4 fe onu manufacturers, welcome to wholesale cheap 4 fe onu, 100m 4-port onu from our factory.PTF1034DWProduct DescriptionPTF1034-ONU-1TV with WIFI is an EPON ONU complying with IEEE802.3ah, YD / T 1475-2006 and CTC 2.1 standard .It has 4FE ports and one CATV RF port and WIFI device, good manage ability, internal switching function and dual fiber input. It can be used for FTTH CATV network system..Product FeatureDual Fiber to Home designSupport 4094pcs VLAN, support VLAN stacking (QinQ);Support port isolation； Support 8K per MAC's wire-speed learning and aging, support MAC address restriction;Support 802.1w (RSTP) Spanning Tree Protocol;Support IGMP Snooping, support CTC controllable multicast;Support priority queue scheduling, support SP, WRR or SP WRR scheduling algorithm;Support port speed, support for storm suppression;Support Dying Gasp;Support Telnet and CLI;Support 1-13 wireless channelSupport single wireless AntennaSupport remote software upgrade Product SpecificationItemParameterDescriptionInterface Specifications Service port Provide a single PON portProvide four FE LAN interfaces (10/100base-T adaptive)Provide one CATV port Provide one reset buttonProvide one adjustment knob for the output levelPower Port12V/1A DC Power InputData Exchange Built-in Ethernet switchingFrequency Range 2.4GHzWireless speed 300MbpsSSID Support Multiple SSID, Hidden SSID and Wifi Protocol Setup (WPS)Functional SpecificationsEPON StandardComply with IEEE802.3ah、YD/T 1475-200 and CTC 2.1 Standard Dying Gasp Support Dying Gasp reportedVLAN Support 4094 per VLANSupport 802.1Q VLAN、SVLAN Support VLAN StackingMAC address learning Support 8K per MAC addressSupport hardware-based wire-speed MAC address learningSupport static MAC address, MAC address restrictionsSpanning Tree Protocol Support 802.1w (RSTP) Spanning Tree ProtocolMulticast Support IGMP Snooping, controllable multicast support CTCSupport 128 multicast groupsQuality of service（QoS） Support the flow classification based on the destination IP, source IP, destination MAC, source MAC, VLAN priority, VLAN ID, Ethernet frame type, 802.1p priority, DSCP, TOS.Support four priority queues, support SP, WRR or SP WRR scheduling algorithmFlow Control Support IEEE 802.3x full-duplex flow controlSupport port speedManagement maintenance Support Telnet, support CLI management configuration Support equipment software and remotely upgrade of configuration filesStatus IndicationIndicatorPON, LAN1 ~ 4 indicates PON port and four LAN ports link, and Active statusPOWER, LOS indicates ONU power working status and PON port optical signal LOS statusOptical Specifications (Forward Path) Wavelength1100~1600nm Optical Power Input Range-20~-1dBm Recommended Optical Power Input Range-15～-4dBm Optical Input Return Loss≥45dB RF Specifications (Forward Path) Bandwidth47～1003MHz Flatness±0.75dB47～870MHz,at 25℃Slope0~1.0dB47～870MHz,at 25 ℃Temperature Stability±1.0dBIn the operating temperature range (-25℃ ~ 65℃)Output Level70±2dBuV-15dBm input optical power, per channel modulation 4.0%, in the 860MHz point test, at 25℃ Return Loss≥14dB47~1000MHz,at 25℃Impedance75Ohm MER≥33dB-15~-4dBminput optical power≥26dB-20~-16,-3~ 2dBm input optical powerUser Interface Optical Connector TypeFC/APC or SC/APCOptionalRF OutputF connector deviceOptical Power IndicatorTwo color lights Optical power<-20dBm ,redOptical power>-20dBm,greenPhysical SpecificationsDimensions, weight161mm* 110mm* 36mmGross Weight：0.38kg Power supply, power consumption100V～240V AC/50Hz～60Hz 12V1A DCpower consumption：< 5WWork EnvironmentOperating Temperature：-10～55℃ Storage Temperature：-40～85℃ Humidity：10%～90% Non-condensingStorage humidity：5%～95% Non-condensing
