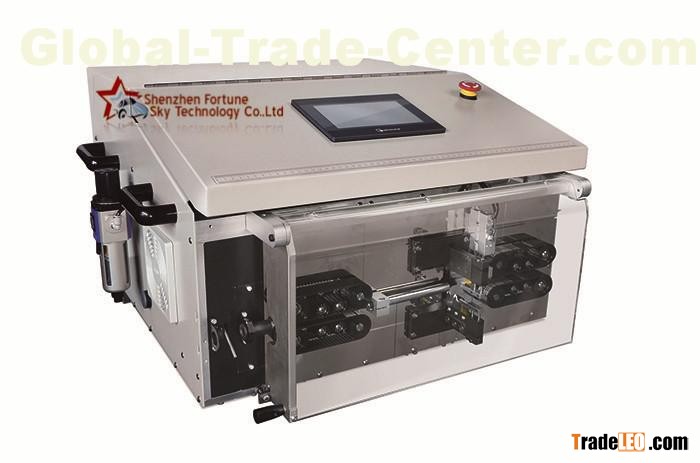

Fully Automatic Round Sheathed Cable Cutting Stripping Machine

Stripping machine parameters:

Model No.: DM8500

Wire cutting capacity: 50mm ~ 9999mm

Processing diameter: 3.0-8.0mm

Cutting depth unit: 0.01mm

Processing efficiency: 400-700pcs per hour (depended by wire )

Maximum capacity of sheath stripping: left rear: 45mm / right rear: 100mm

Shortest sheath stripping length: 35mm

Dimensions: 560x690X400mm

Weight: 102KG

Power: AC220V 50 60HZ Power: 500W

Features:

1. This machine is suitable for processing multi-core power cord and special single-core wire;

2. wire cutting, stripping jacket, stripping core wire and other complex work order can be completed on the machine, to maximize the saving labor costs and improve processing quality;

3. The mobile blade holder, cutting, stripping were used different tools to complete, cut neatly, stable stripping quality;

4. Up to 100 groups of storage capacity, so that a variety of data processing intact, retrieved at any time!
