Brand:TIANCHENG
Model:RG11
MOQ:2000 Meter

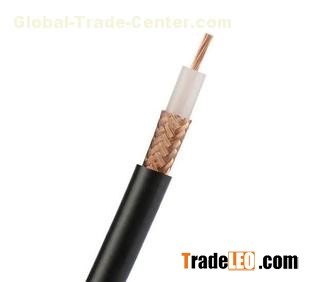

RG11 Coaxial Cable
Since 1988, we have been started to produce electric wire and cables. We export various types of cables to the world market.
Our main aim is to supply a high quality approved product and service at competitive prices.
We continue to invest in the business to meet the market's requirements and to keep our customers satisfied with our service and the quality of our product.
1 Construction
| Center Conductor: | 1.63 +/-0.01mm oxygen free copper/Copper Clad Steel |
| Dielectric: | 7.11+0.05mm Foamed PE |
| Shield: | Bonded Al Foil |
| Braid Coverage: | 60%-90% Copper Braid |
| Jacket: | 10.03+0.10mmPVC |
| Jelly/APD | Per Customers' Special Requirement |
2 Characteristics
| Impedance: | 75+3 Ohm |
| Capacitance: | 54+3pF/m |
| Velocity of Propagation: | 85% |
| Return Loss: | 20dB min (5-2300MHz) |
3 Attenuation
| Attenuation | [@68oF. (20oC.)] | |
| Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
| 5 | 0.38 | 1.25 |
| 55 | 0.96 | 3.15 |
| 187 | 1.75 | 5.74 |
| 250 | 2.05 | 6.72 |
| 300 | 2.25 | 7.38 |
| 400 | 2.60 | 8.53 |
| 450 | 2.75 | 9.02 |
| 500 | 2.90 | 9.51 |
| 550 | 3.04 | 9.97 |
| 600 | 3.18 | 10.43 |
| 750 | 3.65 | 11.97 |
| 865 | 3.98 | 13.05 |
| 1000 | 4.35 | 14.27 |
