Brand:TIANCHENG
Model:RG6
MOQ:2000 Meter

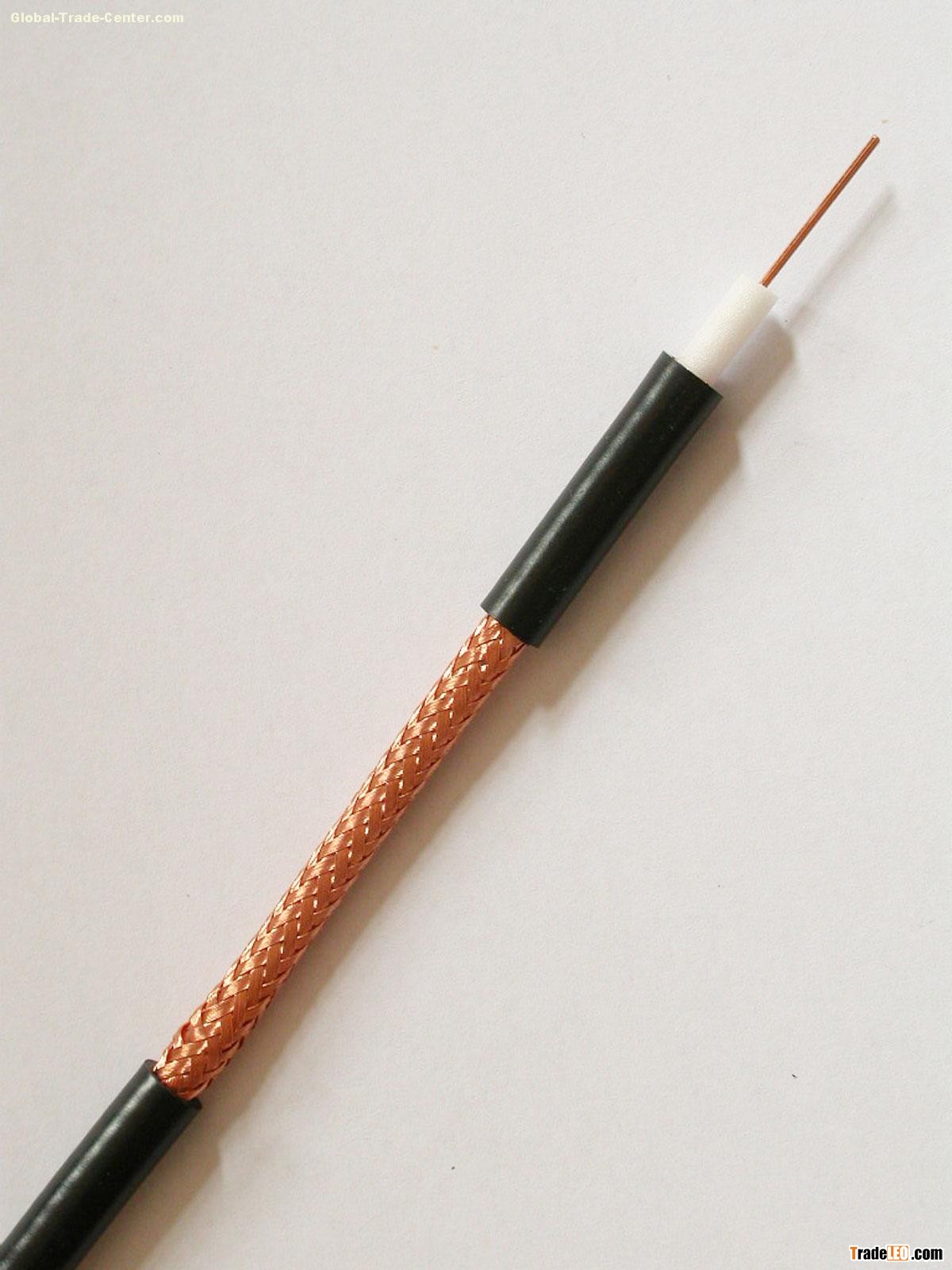

RG6 Coaxial Cable
Physical Specifications :
| Nominal Dimensions | Standard
| Tri-shielding
| Quad-shielding
|
| Conductor | 1.02mm( 0.0403 in) | 1.02mm( 0.0403 in) | 1.02mm( 0.0403 in) |
| Dielectric | 4.57mm(0.180 in) | 4.57mm(0.180 in) | 4.57mm(0.180 in) |
| Shielding 1 | Al /Pet foil | Bonded Al /Pet foil | Bonded Al /Pet foil |
| Shielding 2 | 0.12mm*64 (40% coverage) | 0.12mm*80 (60% coverage) | 0.12mm*144 (90% coverage) |
| Shielding 3 | - | Al /Pet foil | Al /Pet/Al foil |
| Shielding 4 | - |
| 0.12mm*64 ( 40% coverage) |
| Jacket | 6.91mm( 0.272 in) | 7.06mm( 0.278 in) | 7.62mm( 0.300 in) |
| Messenger | 1.3mm (0.051 in) Zinc plated steel | ||
Mechanical Characteristics:
Mechanical Breaking Strength of Messenger 0.051 inch 185lbs. 823 N
Electrical Characteristics :
Impedance ( Ohms) 75±3
Nominal Capacitance (pF/m) 53
Velocity of Propagation 85%
Structural return loss (Db)≥ VHF 22
UHF 20
Attenuation[@68F.(20 Degree centigrade)]
| Frequency Mhz | dB/100 ft | dB/100 M |
| 5 | 0.58 | 1.90 |
| 55 | 1.60 | 5.25 |
| 211 | 3.05 | 10.00 |
| 300 | 3.55 | 11.64 |
| 400 | 4.15 | 13.61 |
| 450 | 4.40 | 14.43 |
| 550 | 4.90 | 16.08 |
| 750 | 5.65 | 18.54 |
| 865 | 6.10 | 20.01 |
| 1000 | 6.55 | 21.49 |
