Brand:Great Wall
Model:-
MOQ:1 Sets

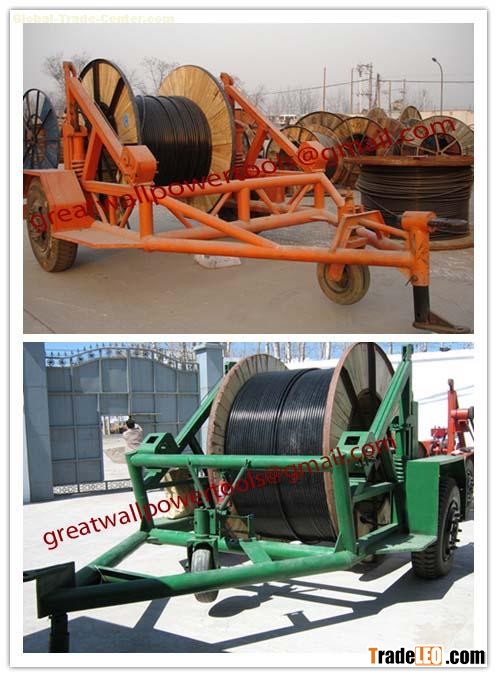

China Drum Trailer,best quality Cable Drum Trailer, Best quality cable trailerCharacteristics:
1.Suitable for overhead* and underground cabling operations.
2.Loading and unloading are safely carried out by one operator by means of a hydraulic motor tilting frame.
3.The trailer in standard version is equipped with a 70 mm diameter drum shaft and two centering cones.
4.Tow bar adjustable in height.
5.Overrun brake.
6.Optional drum shaft brake.
Please contact us is you have any requirement, and we can make products with special specification as your requirements.
| Product No. | Rated load | Applicable drum diameter | Applicable drum width | Axle bar diameter | Dimension of main body |
| DH3050-3 | 3T | ≤φ2400mm | ≤1400mm | φ76mm | 3800mm×2300mm×2000mm |
| DH3050-5 | 5T | ≤φ2800mm | ≤1600mm | φ90mm | 4000mm×2600mm×2200mm |
| DH3050-8 | 8T | ≤φ3400mm | ≤1800mm | φ120mm | 4300mm×3200mm×2400mm |
| D3050-10 | 10T | ≤φ3600mm | ≤2000mm | φ150mm | 4600mm×3800mm×2600mm |
