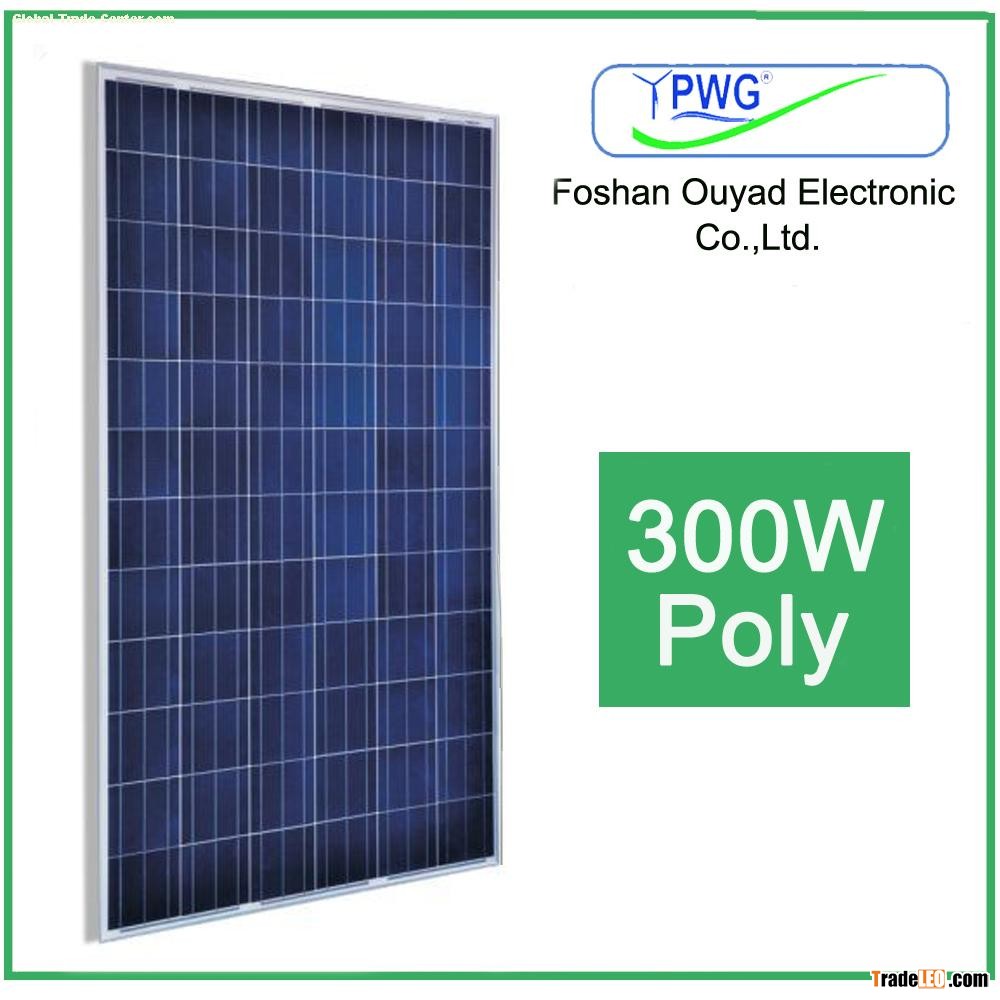

High efficiency 300W poly solar panel for home pv module
2016-09-23 10:03  Views:85
Price:120.00 USD/Pieces
Brand:OUYAD
Model:SP-300W
MOQ:25 Pieces
Send Inquiry

Solar energy products are a trend and good way to achieve zero home bills or commercial invest in the future. So choose a good solar panel is important.The key factors to consider when comparing solar panels are performance (they should produce the power that the rating leads you to expect), quality, durability and beneficial warranty terms.

Poly Solar Panel 300W Characteristics
1) high reliability with guaranteed +/-3% output power tolerance
2) The modules can withstand high wind-pressure,snow loads and extreme temperatures
3) Bypass diodes to minimize power loss with shading
4) High and stable conversion efficiency to ensure the highest quality

A Grade Polycrystalline Silicon Solar Cell
1) Fomat:156±0.5mm, diagonal 200±1.0mm
2)  Average thickness: 195μm ±20μm
3) Front(-): 1.5mm bus bars(silver)
      Blue anti-refelecting coating(silicon nitride)
4) Backe(+): 2.5mm wide soldering pads(silver)
     Back surface field(aluminiem)

Quality and Warranty

For a period of twenty‐five (25)years commencing on the Warranty Start Date, loss of power output of the nominal power output measured at Standard Test Conditions (STC) for the Product(s) shall not exceed:

For Polycrystalline A grade solar cell, 3% in the first year, thereafter 0.66% per year, ending with 81% in the 25th year after the Warranty Start Date;
The Warranty Start Date shall be defined as the date of the Bill of Lading date

10Years Manufacturing Warranty
15Years Warranty 90% Power Output
25Years Warranty 85% Power Output



Product Information


Electrical Characteristics
ITEM NO. S/P-300 S/P-310 S/P-320
Maximum Power at ST(Pmax)W 300Wp 310Wp 320Wp
Maximum Power Voltage(Vmp)V 36.4V 37.2V 37.6V
Maximum Power Current(Imp)A 8.24A 8.33A 8.51A
Open Circuit Voltage(Voc)V 42.3V 45.4V 45.8V
Short Circuit Current(Isc)A 8.92A 9.02A 9.21A
Cell Efficiency(%) 17.50% 18.04% 18.83%
Module Efficiency(%) 15.54% 16.1% 16.58%
Size of Module (mm) 1930*1000*40
Number of Cell(PCS) 72(6*12)PCS
Solar Cell Poly 156*156
Weight(KG) 23.4Kg
Power Tolerance 0~+3%



Components & Mechanical Data
Front Glass Thickness (mm) High Transparency Tempered Glass 3.2mm
Junction Box Type Pass the TUV Certificate PPO(Black/IP65)
Output Cables 4mm²/0.9m
frame (Material Corners, etc.) Aluminum-alloy
Encapsulation Material EVA(0.50±0.03 mm thickness)
Back Foil White TPT(0.50±0.03 mm thickness)
Fixing Adhesive Silicone Sealant ( White)
Temperature Range (°C) -40°C to +90°C
Max Load Capacity(Kpa) 2.4wind load/5.4 snow load



Company Information

Foshan Ouyad Electronic Co.,Ltd  was founded in 1998.We are real professional manufacturer of  solar panels,such as mono solar panels,poly solar panels and semi flexible solar panels and so on,covering an area of more than 20,000sqms. In 2014,Ouyad company  are well known as Guangdong Province High Technology Corporation.
For right now,we have our own independent  workshop,supply complete solar power system,including solar panel,battery,controller,inverter,etc.Our products are authorized by CE test system and the ISO9001:2008 International quality system certification.



Packing Configuration
Container 20'GP 40'HQ
Pieces per pallet 26PCS 26PCS
Pieces per container 300PCS 700PCS



Shipping
By Sea Ship from Foshan, Guangzhou, Shenzhen
By Air Ship from Guangzhou Baiyun International Airport
By Express Ship by DHL, FedEx, EMS, TNT, UPS
