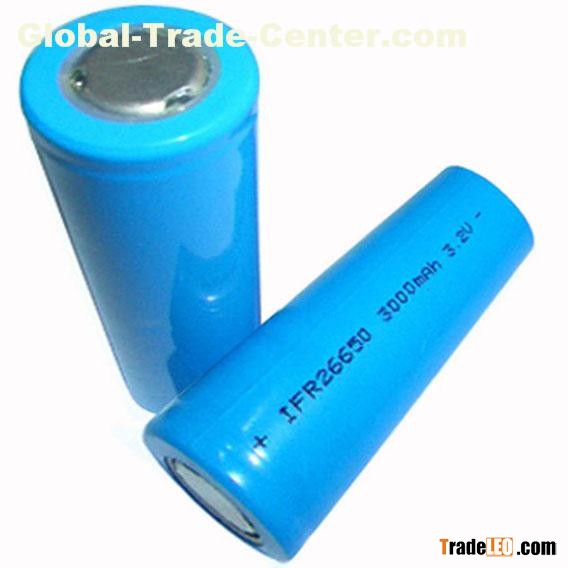

★ Specifications:
 ＊ Rated capacity:
  — Typical: 3,000mAh
  — Minimum: 2,950mAh
 ＊ Nominal voltage: 3.2V
 ＊ Cut-off discharge voltage: 2.0V
 ＊ Maximum charging voltage: 3.65V
 ＊ Internal impedance: 25mΩ
 ＊ Standard charge:
  — Constant current: 0.5C/5A
  — Constant voltage: 3.65V
 ＊ Standard discharge:
  — Constant current: 0.2C/5A
  — Voltage: 2.0V
 ＊ Fast charge:
  — Constant current: 1C/5A
  — Constant voltage: 3.65V
 ＊ Fast discharge:
  — Constant current: 1C/5A
  — Voltage: 2.0V
 ＊ Continuous charge current: 1C/5A (maximum)
 ＊ Continuous discharge current: 5C/5A (maximum)
 ＊ Operating temperature:
  — Charge: 0 to 45℃
  — Discharge: -10 to 60℃
  — Storage temperature: -20 to 25℃
 ＊ Weight: 85g

★ Packing:
 ＊ Dimensions (H x D): 65.3 x 26.5mm

★ We also can supply you IFR16340-400mAh, IFR18650-1400mAh, IFR26500-2200mAh, IFR26650P-2200mAh, IFR32600-3500mAh, IFR32650-4000mAh, IFR42110-11000mAh, IFR42120-12000mAh for car, motorcycle,  HEV, PHEV etc.

★ Applied fields:
 ＊ Communication equipment: PHS phone, interphone
 ＊ Information equipment: Notebook computer, PDA, portable fax, printer
 ＊ Electric tool: Powered drill, electric equipment
 ＊ Electric vehicle, electric motorcycle, E-bicycle
 ＊ Miner 's light, mining auto-tracking instrument
 ＊ Power solutions for solar energy storage, toys and other mobile products
