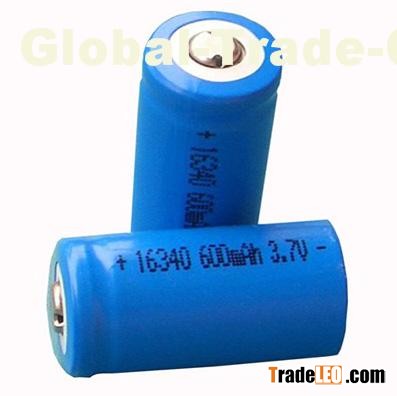

ICR16340-600mAh
2016-09-23 10:08  Views:299
Price:0.00 USD/-
Brand:WECODO
Model:ICR16340-600mAh
MOQ:-0 -
Send Inquiry

★ Specifications:
 * Nominal capacity: 600mAh
 * Nominal voltage: 3.70V
 * Inner resistance: ≤80mΩ
 * Charging voltage limitation: 4.20 +/-0.02V
 * Charging end-current: 0.02 C5A
 * Discharging end-volt: 3.0V
 * Standard charging current: 0.5C5A
 * Standard discharging current: 0.5C5A
 * Quick charging current: 1C5A
 * Quick discharging current: 1C5A
 * Discharging current: 2C5A (maximum)
 * Working temperature range:
  — Charge: 0 to 45℃
  — Discharge: -20 to 60℃
 * Working humidity range: less than 85% RH
 * Storing temperature and humidity range:
  — Charge: 0 to 30℃
  — Discharge: less than 45℃
  — Humidity: less than 85% RH
 * Outside dimensions (D x H): 16.2 x 34.0mm
 * Weight: about 16g


We also can supply you ICR10440-320mAh, ICR14500-600mAh, ICR16340-600mAh, ICR17500-1000mAh, ICR17650-1400mAh, ICR17670-1400mAh, ICR18350-700mAh, ICR18500-1400mAh, ICR18650-2200mAh etc.
