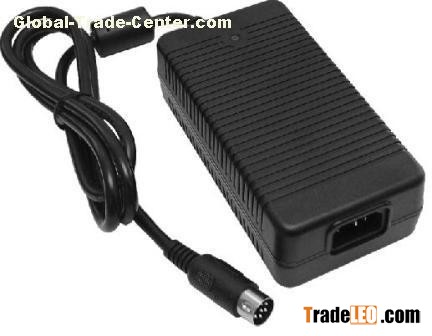

100 watts desktop type AC/DC switching mode power supply.
Single output.
Output voltage available from 11~48VDC.
All supplies are UL 94V-1 min compliant.
All models meet FCC Part-15 class B & CISPR-22 class B emission limits and are designed to comply with UL/CUL(UL 60950-1), ITS/GS(EN 60950-1) and new CE requirements.
All units are 100% burned in and tested.
Wide input voltage 90 to 264 VAC, 47 to 63 Hz.
Input surge current, over voltage and over load protection.
Over Voltage Protection.
Active Power Factor Correction(PFC).
Class I
CEC Level V and Energy Star 2.0 Compliance.
2 years warranty.

Specification:
Input Voltage:90-260 VAC
Input Frequency: 47-63 Hz
Input Current: 1.35A at 115VAC/0.5A at 230VAC
Efficiency: 87 %
Hold-Up Time: 12 mS min
Line Regulation: 0.5%
Load Regulation: 3%
Ripple & Noise: 1% p-p max
Safety: UL/CUL, TUV/GS, CE, FCC

Model List:
SPU100-105: 11~13VDC/9.09~7.69A/100W maximum
SPU100-106: 13~16VDC/7.69~6.25A/100W maximum
SPU100-107: 16~21VDC/6.25~4.76A/100W maximum
SPU100-108: 21~27VDC/4.76~3.70A/100W maximum
SPU100-109: 27~33VDC/3.70~3.03A/100W maximum
SPU100-111: 40~48VDC/2.50~2.08A/100W maximum
