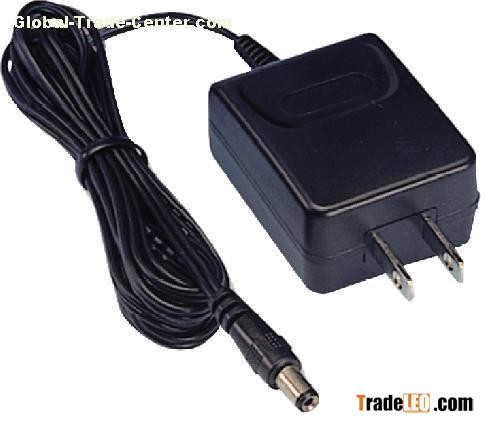

10 watts wallmount type AC/DC switching mode power supply.
Single output.
Output voltage available from 5~40VDC.
All supplies are UL 94V-0 min compliant.
All models meet FCC class B and are designed to comply with UL/CUL(UL 60950) requirements.
All units are 100% burned in and tested.
Wide input voltage 90 to 264 VAC, 47 to 63 Hz.
CEC level V and Energy Star 2.0 Compliant.
2 years warranty.

Specification:
Input Voltage:90-264 VAC
Input Frequency: 47-63 Hz
Input Current: 0.3A at 115VAC/0.2A at 230VAC
Efficiency: 80%
Hold-Up Time: 5 mS min
Line Regulation: 0.5%
Load Regulation: 3%
Ripple & Noise: 1% p-p max
Safety: UL/CUL, TUV, CE, FCC

Model List:
SPU10-102: 5~6 VDC/1.60~1.33A/ 8W maximum
SPU10-103: 6~8 VDC/1.33~1.00A/ 8W maximum
SPU10-104: 8~11VDC/1.25~0.91A/10W maximum
SPU10-105: 11~13VDC/0.91~0.77A/10W maximum
SPU10-106: 13~16VDC/0.77~0.63A/10W maximum
SPU10-107: 16~21VDC/0.63~0.48A/10W maximum
SPU10-108: 21~27VDC/0.48~0.37A/10W maximum
SPU10-109: 27~33VDC/0.37~0.30A/10W maximum
SPU10-110: 33~40VDC/0.30~0.25A/10W maximum
