Brand:UPSEN
Model:Nature Star Series 1000Va-2000Va
MOQ:5 Pieces
High frequency Modified Sine Wave power Inverter for Office

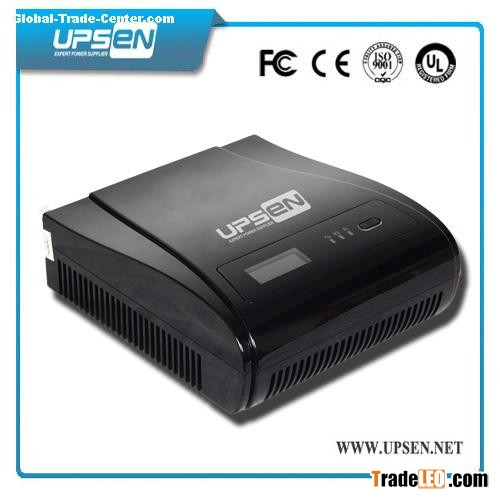

Modified Sine Wave Solar Inverter Controller Nature Star Series 1000Va-2000Va (1ph in/1ph out)
Key Features
1.Automatic restart.
2.Over-load protection.
3.Auto Switch AC to DC .
4.High Frequency Inverter Model.
5.Full automatic and silent operation.
6.Built-in PWM Solar Charge Controller.
7.Inverter with Modified Sine Wave Output.
8.Digital LCD Screen, and audible and visual alarm.
9.Restroation of electricity,automatically actived.
10.Three-steps intelligent charging control to recharging.
11.The modified sine wave output waveform suitable for many electronic loads.
Application
Home & Office appliances, Solar power systems,Data Processing Center,Network Rooms,air-condition,fridge,Servers, Communications Equipment etc
Full Protection:
Protection for low battery voltage, overload, output short circuit and overtemperature
restrain surge interference, eliminate noise, protection for
thunderstriking, providing reliable power to the home appliances
| Technical Specification | ||||
| MODEL | NS1000 | NS2000 | ||
| CAPACITY | VA/W | 1000VA/720W | 2000VA/1300W | |
| NOMINAL BATTERY VOLTAGE | 12VDC | 24VDC | ||
| LINE MODE | ||||
| INPUT | Nominal Voltage | 220/230/240VAC | ||
| Voltage Range | 170-280VAC (Narrow Range) | |||
| 90-280VAC (Wide Range) | ||||
| OUTPUT | Voltage | 220/230/240VAC | ||
| Frequency | 50Hz/ 60Hz | |||
| Output Waveform | Following the Utility | |||
| EFFICIENCY | >95% (full load, battery full charged) | |||
| TRANSFER TIME | 15ms Typical, 40ms Max. | |||
| BACKUP MODE | ||||
| OUTPUT | Voltage | 220/230/240VAC (+10% / -18%) | ||
| Frequency | 50Hz or 60Hz (Auto detection) | |||
| Output Waveform | Modified Sine Wave | |||
| EFFICIENCY | >80% | |||
| OVERLOAD PROTECTION | 1min@>110%,20s@>120%,0s@>150% | |||
| PROTECTION | Discharge, over-charged, over-loading, over-temperature, short-circuit protection | |||
| BATTERY CHARGER (powered by AC) | ||||
| CHARGING ALGORITHM | 3-step charging | |||
| AC CHARGING MODE | 15Amp / 20Amp Selectable | 10Amp | ||
| FLOATING CHARGING VOLTAGE | 13.7V | 27.4V | ||
| OVERCHARGING VOLTAGE | 16V | 32V | ||
| SOLAR BATTERY CHARGER | ||||
| MAX. INPUT POWER | 450W | 900W | ||
| CHARGING CURRENT | 40Amp | |||
| NOMINAL BATERY VOLTAGE | 12V | 24V | ||
| OPTIMAL WORK VOLTAGE RANGE | 15V~18V | 30V~36V | ||
| MAX. PV INPUT VOLTAGE | 55V | |||
| MAX.PV INPUT CURRENT | 40 Amp | |||
| GENERAL | ||||
| PHYSICAL | Dimension (DxWxH) | 275mm*226mm*85mm | ||
| Net Weight (kg) | 2.62 | 2.76 | ||
| ENVIRONMENT | Operating Environment | 0- 50°C, 5%-90 % relative humidity (non-condensing) | ||
| Storage Environment | 15°C to 55°C to 55°C, 5% to 95% humidity (non-condensing) | |||
| Noise Level | Less than 50dB | |||
