Brand:Rainbow Star Plus Series 1000Va-5000Va
Model:Rainbow Star Plus Series 1000Va-5000Va
MOQ:5 Pieces
hybrid solar inverter dc to ac power inverter with LCD

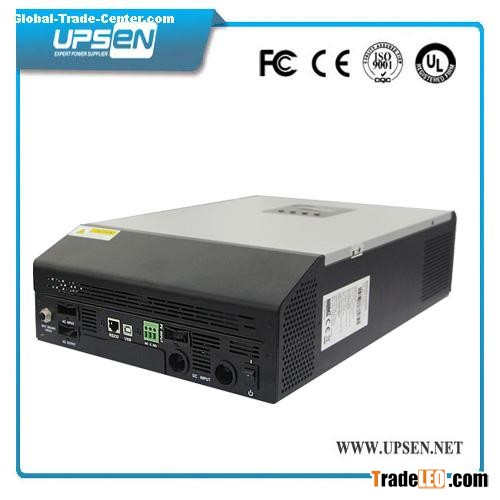

Off Grid Hybrid Pure Sine Wave Inverter Controller Rainbow Star Plus Series 1000Va-5000Va (1ph in/1ph out)
Key Features
1:Cold start function
2:Built-in PWM solar charge controller
3:The original constant power technology
4:Designed to Operate under Harsh Environment
5:Compatible to mains voltage or generator power
6:Doesn't affect the working life of electrical equipment
7:·Pure sine wave output waveform : clean power for sensitive loads
8:Small, light and artistic, benefited from adopting the SMD paster technology
9:Parallel operation with up to 4units only available for 4KVA/5KVA (Optional)
10:Selectable input voltage range for home appliances and personal computers
11:LED & LCD Display on the front panel shows the working and failure state
Application
Supply the reliable long back up time power for the TV,Computer,Control Equipment,Portable Cine,Printing machines,Data center, Financial,Electronic Cash Registers,Power tools,Securities System,Cameras and photographic equipment etc.
| Technical Specification | |||||
| Model | RS Plus 1K | RS Plus 2K | RS Plus 3K | RS Plus 4K | RS Plus 5K |
| RATED POWER | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | 4000VA/3200W | 5000VA/4000W |
| INPUT | |||||
| Voltage | 208/220/230/240 VAC | ||||
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | ||||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | ||||
| OUTPUT | |||||
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | ||||
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA |
| Efficiency (Peak) | 90~93% | 93% | |||
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | ||||
| Waveform | Pure sine wave | ||||
| BATTERY & AC Charger | |||||
| Battery Voltage | 12VDC | 24VDC | 48 VDC | ||
| Floating Charge Voltage | 13.5VDC | 27VDC | 54 VDC | ||
| Overcharge Protection | 15.5VDC | 30VDC | 60 VDC | ||
| Maximum AC Charge Current | 10A or 20A | 20A or 30A | 20A or 30A | ||
| SOLAR CHARGER | |||||
| Maximum PV Array Open Circuit Voltage | 30VDC | 60VDC | 90VDC | ||
| Solar Charge Current | 50A | 110A | |||
| Standby Power Consumption | 1W | 2W | 2W | ||
| PHYSICAL | |||||
| Dimension, D x W x H (mm) | 95*240*316 | 100*272*355 | 120*295*468 | ||
| Net Weight (kgs) | 5 | 6.4 | 6.9 | 9.8 | 9.8 |
| OPERATING ENVIRONMENT | |||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||||
| Operating Temperature | 0°C - 55°C | ||||
| Storage Temperature | -15°C - 60°C | ||||
