Brand:SUNLIKE/OEM
Model:LCD LW12/24-1000 Power Inverter
MOQ:50 Pieces

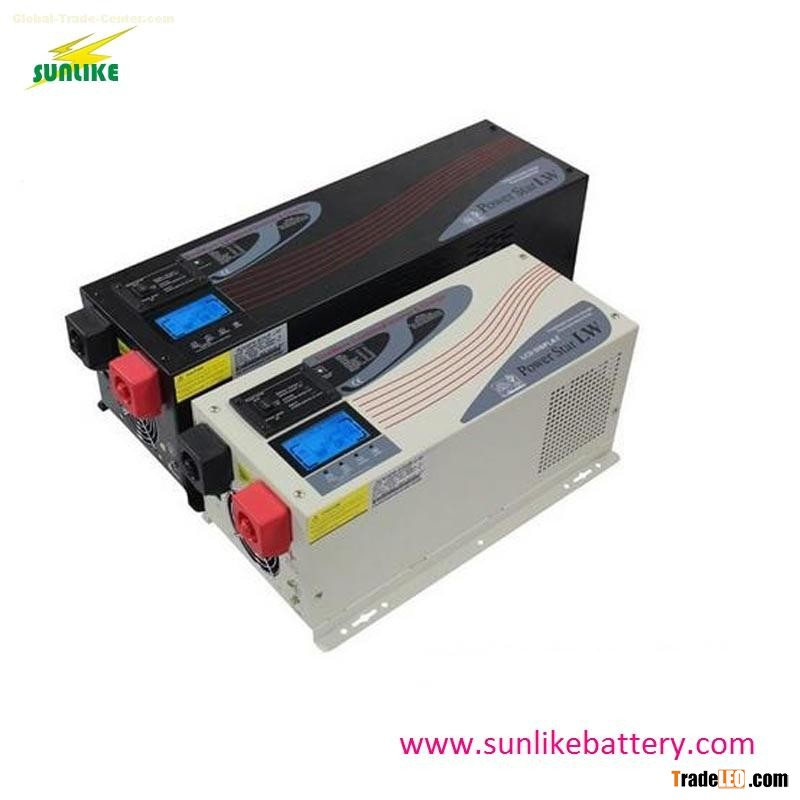

1000W UPS Charger Pure Sine Wave Inverter with LCD Display
Model: LCD LW12/24-1000 Solar Power Inverter Solar Inverter Pure Sine Wave Inverter / Solar Inverter
Capacity: 500W-12KW for choose.
Peak Power: 3 times as rated Power
Input AC Voltage: 110/120/230 and 220/230/240VAC
DC voltage: 12V, 24V.
Frequence: 50Hz or 60Hz adjustable via LCD
Function: Optional remote control, Bypass, and Auto-reconnection.
Solar Inverter Pure Sine Wave Inverter Powerstar Off-Grid Low Frequency Solar Pure Sine Wave Inverter, LCD indicators display, Pure Sine Wave Inverter 220/230, 50Hz, off grid solar inverter with pure copper transformer, peak power three times, with built-in AC Charger 35/70Amp, Charger current adjustable, UPS Function.
Applications
Commonly utilized in home, office, ships, industry, government, vehicles, off-grid solar power systems, and places lacking single phase city power.
Main Features:
1.LED/LCD digital display show voltage, load and battery info in real time.
2.Peak power is three times of rated power.
3.Can work with inductive load such as air conditioner, motor door and so on.
4.Pure sine wave output, available for sensitive load.
5.4-step progressive charging, 7 battery type selector.
6.Fast and powerful charger with 35A and 75A/90A.
7.Accept generator's energy output.
8.High power factor 0.9, low power consumption.
9.Automatically transfer between battery and line modes.
10.Microprocessor control guarantees high reliability.
11.Bypass without battery connected.
12.Remote control function.
about SUNLIKE:
We SUNLIKE Energy Technology Co.,Limited manufacturer Solar Inverters, solar batteries, AGM Sealed Lead Acid Batteries and Solar Gel Batteries 2V/6V/12V since 2001, mainly used for solar power, wind power, ups system, inverter system, telecom, golf cart, electric vehicles and so on.
Web:www.sunlikebattery.com.
Tel: +86-15818568975.
linkedin:https://cn.linkedin.com/in/upsbattery.
Facebook:http://www.facebook.com/leadacidbatteries.
Pinterest:https://www.pinterest.com/solarbattery/.
| Model No | DC voltage | Rated power | N.W (kgs) | G.W (kgs) |
| LED MINI LW12/24-500 | 12/24VDC | 500W | 8 | 9 |
| LED MINI LW12/24-1000 | 12/24VDC | 1000W | 16 | 18 |
| LW12/24-1000 | 12/24VDC | 1000W | 16 | 18 |
| LW12/24-1500 | 12/24VDC | 1500W | 18 | 20 |
| LW12/24-2000 | 12/24VDC | 2000W | 20 | 22 |
| LW12/24/48-3000 | 12/24/48VDC | 3000W | 26 | 28 |
| LW24/48-4000 | 24/48VDC | 4000W | 48 | 56 |
| LW24/48-5000 | 24/48VDC | 5000W | 48 | 56 |
| LW24/48-6000 | 24/48VDC | 6000W | 48 | 56 |
| LW48/72-7000 | 48/72VDC | 7000W | 50 | 58 |
| LW48/72-8000 | 48/72VDC | 8000W | 52 | 60 |
| LW48/72-10000 | 48/72VDC | 10000W | 52 | 60 |
www.sunlikebattery.com.
| Model | LW Series | 1000 | 2000 | 3000 | 3000 | 4000 | 5000 | 6000 |
| Capacity | W | 1000W | 2000W | 3000W | 3000W | 4000W | 5000W | 6000W |
| Battery | DC Voltage (Optional) | 12V | 24V or 12 | 24V | 48V | 48V | 48V | 48V |
| Recharge current | 35+/-5A | 35+/-5A | 45+/-5A | 35+/-5A | 35+/-5A | 40+/-5A | 50+/-5A | |
| 3 - stage charge | Boost CC → Boost CV → Float | |||||||
| Input | Nominal Voltage | 120VAC or 230VAC | ||||||
| voltage trip range | 90v+-4% to 140v+-4% or 184v/154v +-4% to 253v+-4% | |||||||
| Voltage re engage range | 100v+-4% -135v+-4% or 194v/164v+-4% to 243v+-4% | |||||||
| Max input AC voltage | 150VAC or 270VAC | |||||||
| Frequency | 50Hz or 60Hz(Auto detect) | |||||||
| Current | 25 Amps in maximum | |||||||
| Efficiency | 95% | |||||||
| Output | Voltage | 120V or 230V AC ±5% | ||||||
| Wave form | Pure Sine wave | |||||||
| Frequency | 50/60Hz | |||||||
| voltage range | Depends on battery type | |||||||
| Transfer time | ≤5ms | |||||||
| Protection | Overload | 15 mins for 125%, 60s for 150%, 20s for over 150s | ||||||
| Short circuit protection | Fault after 10 secs | |||||||
| Electric Fans | Thermo -controlling | |||||||
| Static Consumption | < 10 Watts | |||||||
| Surroundings | Temperature, humidity | 0-50 °C ,90%, no condensing | ||||||
| Surge rating (10s) | 3000W | 6000W | 9000W | 9000W | 8000W | 10000W | 12000W | |
| capable of starting electric moto | 1HP | 2HP | 3HP | 3HP | 4HP | 5HP | 6HP | |
| Physical | Mount | Horizontal wall mount | ||||||
| Size CM (H x W x D) | 44.2 x 21.8 x 17.9 | 63.0 x 21.8 x 17.9 | ||||||
| Carton CM (H x W x D) | 58.0x32.0x31.0 | 75.5 x32.0x31.0 | ||||||
| N.W ( KGS) | 19 | 21 | 25 | 25 | 35 | 38 | 40 | |
| G.W (KGS) | 21 | 23 | 27 | 27 | 37 | 40 | 42 | |
| Remark | Specification for reference , subject to change without prior notification | |||||||
| We accept order with special specifications | ||||||||
