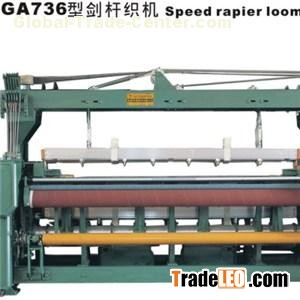

GA736 rapier loomFeatures: This loom is mainly used for heavy fabric , 4 short connectors and short red seat to ensure big enough strength for beating up, 6 -connecting rod structure can make sure enough time for gripper wefting.Main datas:ModelGA736Reed Width190/220/230/255/280/300/330/340/360Speed140-240 r/minYarn numberCotton 7Ne-60Ne, wool 12Nm-100Nm, chemical fiber 60D-900DsheddingDobby or jacquard or tappetHeald frameMax 18pcsWeft insertionSix connectorBeating upFor lever short connector beating upDia of beam flange600mm or 680mm or 800mmWarp stopSix line electrical warp stopWeft stopPiezoelectric ceramicColor selector4-6 colors selectorpower1.8-2.3kwweight2400-2900kg
