Capacity:     100N to 30kN
Application: Tensile, compression, flexure, shear, peel, tear and other tests of metallic and nonmetallic materials.
Feature and uses:
High stiffness columns are used to link upper crosshead with work table, which ensures frame with high rigidity. Apply servo motor to drive crosshead moving though gear system These rugged electromechanical feature SUNS strain gage load cell force measuring systems. Choice of single working space or dual working space load frame and maximum frame capacities from 100Nto 30kN.
All testing hardware is fully complemented by SUNS developed software that turns your hardware into a sophisticated quality analysis system. Be sure to examine the software products to determine which package is right for your application.
SUNS professional testing software and proprietary control system ultimate come true closed loop testing and control of load, extension and displacement.
Easy to use and operate
1. High accuracy: Measurement accuracy of testing speed, load, crosshead displacement can meet or surpass +0.5% of reading
2. High sampling rate: The sampling rate 50Hz, reach advanced international level
3. High load resolution: Better than 1/300000, no step, and unchanged in full range
4. Multi-cycle control modes: Control system is capable in load cycle, displacement cycle, extensometer cycle or their combination
5. Extending function: Equipped with multi-load cells to meet the further requirement of customers
6. High security: The system can inspect and protect automatically once overload, over currency; Position limiter; Emergency stop
7. Automatic determine the parameters of ReH,ReL,Rp0.2,Fm,Rt0.5 ,Rt0.6,Rt0.65,Rt0.7/Rm,E,etc
8. Comply with different standards, such as GB,ISO,DIN,ASTM,JIS
Technical Specification:

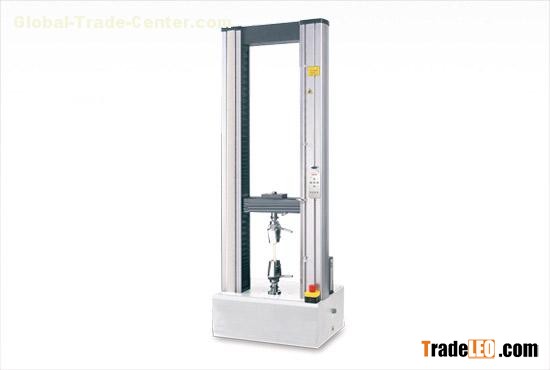

Series Dual Columns Floor-Standing Electromechanical Universal Testing Machine
Mode UTM4000 series
UTM4102/UTM4202/UTM4502 /UTM4103/UTM4203/UTM4503/UTM4104  UTM4204/UTM4304
Capacity 100N/200N/500N / 1kN/2kN/5kN/10kN/ 20kN/30kN
Accuracy Class 0.5
Load range 0.4%～100%FS
Load measurement accuracy within ±0.5 of reading
Load resolution ±1/300000 of Max. capacity, stepless, no change in full range
Long travel extensometer measurement range 10～800mm
Long travel extensometer measurement accuracy within ±1% of reading
Long travel extensometer measurement resolution 0.008mm
Displacement measurement accuracy within ±0.2% of reading
Displacement measurement resolution 0.025μm
Loading speed range 0.005～5%FS/s
Loading speed accuracy Speed<0.05%FS/s,within ±2% of set value,speed≥0.05%FS/s,witin ±0.5%of set value
Extension speed range 0.005～5%FS/s
Extension speed accuracy Speed<0.05%FS/s,within ±2% of set value,speed≥0.05%FS/s,witin ±0.5%of set value
Crosshead speed range 0.001～500mm/min
Crosshead speed accuracy within ±0.2% of set value,
Constant load,strain,displacement control range 0.5%～100%FS
Constant load,strain,displacement control accuracy Set value≥10%FS,within±0.5% of set value, set value<10%FS,within ±1% of set value
frame dimension 694X578X1911mm
Max tensile space 840
Max compression space 1000mm
Effective test space 395mm
Voltage 220V/50Hz,±10%
Power 400W 750KW
Weight 250Kg
