Spectrum Analyzers

Brief Introduction

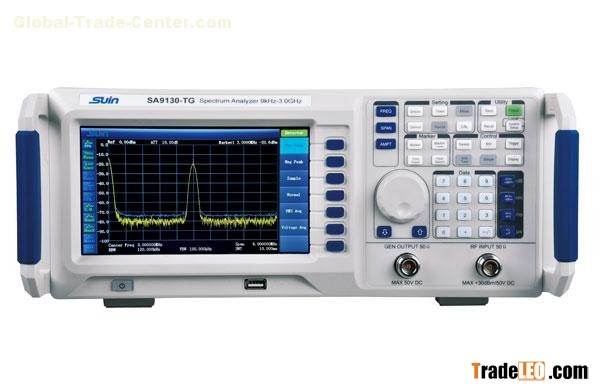

The new high-performance SA9100 Series Spectrum Analyzer were developed with all-digital IF technology to meet demanding customer requirements, its professional bench type, compact size, elegant outlook to show our well design. We provide three selectable frequency range 1.5GHz/2.2GHz/3.0GHz for users, which are high cost-effective and more flexible for users to choose the most economy models. Offering low phase noise, wide analysis bandwidth, straightforward and intuitive operation, and plenty remote communication port, the spectrum analyzer makes measurements fast and easy, can be widely used in science education, enterprise research and industry production.

Features

All-digital IF technology

Frequency Range: 9kHz to 1.5GHz/2.2GHz/3GHz

DNAL: -140dBm Typ.

Phase Noise: -82dBc/Hz (10kHz offset)

Amplitude Resolution: <1.5dB

RBW: 10Hz to 1MHz, step 1-3-10

Tracking Generator optional

Full measuring functions and auto setting

7’ TFT LCD

USB Host, USB Device, LAN, RS232, VGA
