Power Quality Analyzer

Brief Introduction

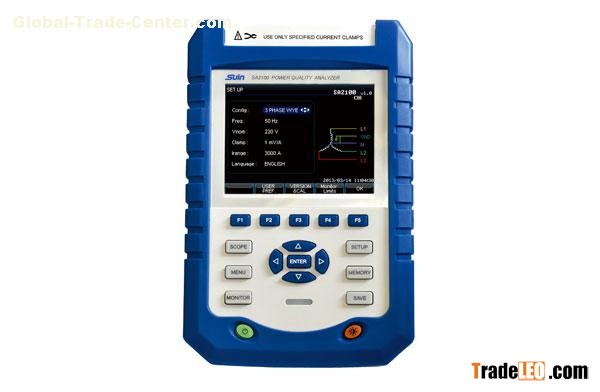

SA2100 Power Quality Analyzer is the professional potable device to measure and analyze the power system quality, supply the harmonics analysis and power quality data analysis, also provide big memory for the data storage, which is used to make the long term logger measuring to power system. The PC software can simply upload the data to PC for full analysis.

Main Features

Waveform real-time display(4 voltages/4 currents)

Half-period RMS measurement (voltage and current)

Measurement of TRMS currents up to 5000A (sensor dependent)

Measurement, calculation and display of harmonics and interharmonics can be up to 50 times.

Transient capture

Active power, reactive power, apparent power and energy, shift power factor and true power factor

Three-phase unbalance (voltage and current)

Flicker

Inrush current

Detection and record of Dips& Swells, Voltage Rapid Change, Interruption.

Detect according to EN50160 or grid with user-defined limit

Data storage and screenshots (can be replayed or output to a PC)

Through the LAN interface PC can keep real-time remote communication with the Analyzer, operate the Analyzer and read back measurement data

Built-in 8G memory card
