Brand:hengpin
Model:Hp-kyj-06
MOQ:-0 -

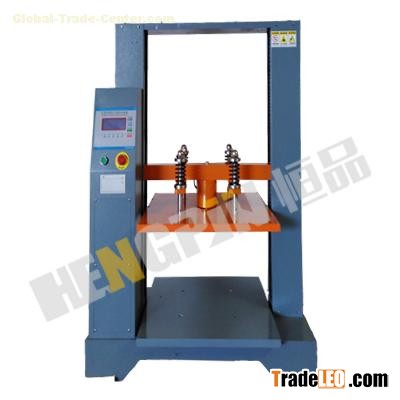

carton compression testing machine is our company’s most developed product toward compression test for hollow plastic products(e.g. plastic bottle, plastic bucket, plastic case, plastic box, plastic turnover box, plastic tank, plastic tray, plastic cup, plastic bowl ). Take special requirement of hollow plastic product into full consideration. Equipped with control operation software in special purpose to fill the gaps in domestic project.
Product feature
1. using microcomputer control technology with high automation.
2. Strong data display and analysis management capabilities, display sample number, sample deformation and real time pressure.
3. Limit travel protection, overload protection, as well as fault tips, such as intelligent configuration to ensure user operation safety.
4. High speed micro printer with high speed, easy to use, low fault.
Technical parameter
| term | parameter |
| Power supply | 200v50hz |
| Measuring range | 5000N（10000N optional） |
| Indicating error | < ±1 % |
| Plate area | 600×600mm |
| Working stroke | 600mm |
| Parallel degree of upper and lower pressure plate | <2mm |
| Deformation rate | <0.1mm |
| Pressure speed | 1-99m/min |
| Return speed | ≥200mm/min |
| indication | Chinese dot matrix menu |
| Print high-speed and mute |
|
| Environment condition | temperature10-30℃ |
| Relative humidity | ＜85％ |
