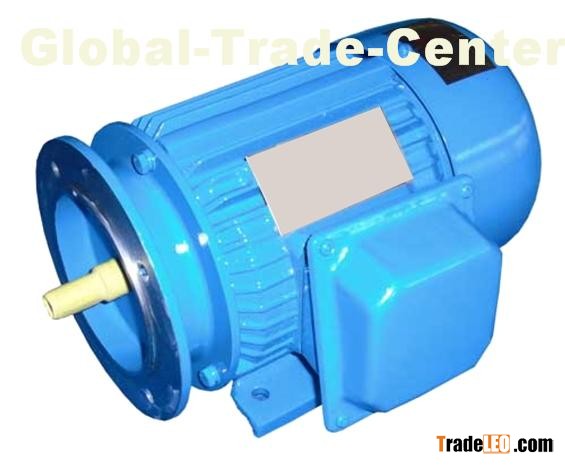

YHSM series frequency conversion high speed 3phase asynchronous motors have simple structure, small, light, low consuption and high frequency. Compared with other general three phase asynchronous motors, they have high rotation speed, high power factors, convenient speed adjustment, excellent low speed performance, large start torque, small start current, stable operation, low noise and high power. On the process of frequency conversion, motor could achieve the 20%~30% of comprehensive energy saving rate.

Technical parameters:

Power: AC220V, 380V, 660V, 1140V, 6000V, 10000V

Frequency: 1~500KV

Output rotation speed: 0~30000rpm

Protection level: IP21, IP23, IP44, IP54

Insulation level: B, F, H

Working mode: consecutive S1

base NO.: H80~H355

Rotation speed range: 0~50000r/min
