Product Specification :

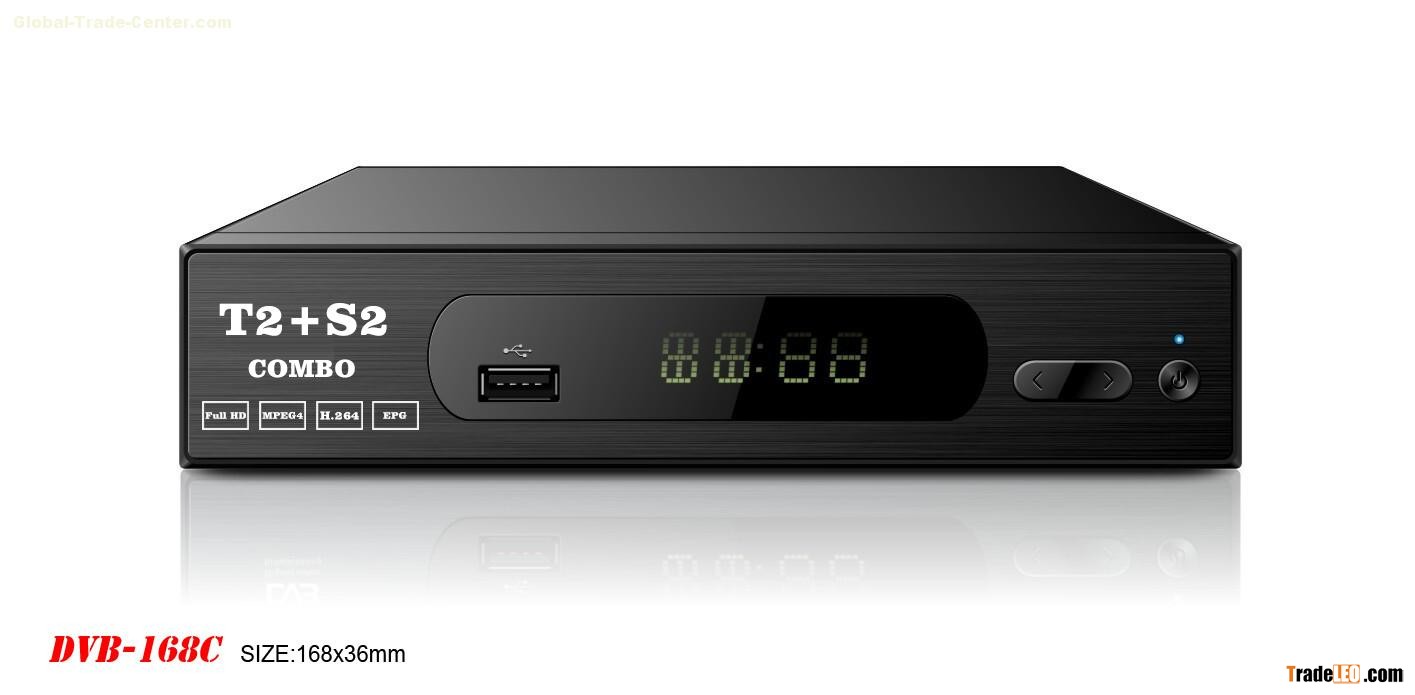

| Model | DVB-T2+S2 COMBO | ||
| Hardware | |||
| CPU | Montage VT6000 | ||
| Memory | 32X16Mbit DDR2 f@400MHz | ||
| Flash | 4M bytes | ||
| Demodulator Type | M88DM6000 | ||
| S2 TUNER | M88TS2022 | ||
| T2 TUNER | MaxLinear MXL 608 | ||
| Front Panel | USB 2.0 Embedded One Host, | ||
| 4-digit LED display on front panel | |||
| red LED Standby,green LED Lock | |||
| Panel KEY, POWER, CH+ ,CH- | |||
| Rear Panel | S2 LNB IN input connector | IEC60169-2 | |
| T2 ANT input connector | IEC-162-2(IEC Female) | ||
| HDMI V1.3 | |||
| RCA CVBS AL AR Connector x1 | |||
| Ypbpr RCAx1 | |||
| Coaxial x1 | |||
| Power AC100~240V 50Hz/60Hz | |||
| DVB-T2 Demodulation | |||
| DVB-T2 Demodulation | Terrisal Receiver StandardDVB-T2/T(EN_302755 V1.3.1/EN 300744) | ||
| Input RF Frequency 48~866MHZ | |||
| Bandwidth6MHz,7MHz,8MHz | |||
| Constellation QPSK 16-QAM 64-QAM and 256-QAM | |||
| FEC 1/2, 3/5,2/3, 3/4,4/5,5/6 | |||
| Guard Interval1/128 1/32 1/16 19/256 1/8 19/128 1/4 | |||
| FFT Mode 2K/ 8K/32K | |||
| Support Single and multiple PLPS | |||
| Input level -83~ -5dBm |
