Brand:Chinasuper
Model:CS-10801C
MOQ:1 Sets
Send Inquiry
Model Number CS-10801C
1 Brand Chinasuper
2 Control LCD/SNMP
3 Video Encoding MPEG2/H.264
4 Input 8 CVBS, 1 ASI
5 IP Output MPTS or 8 SPTS UDP IP Output
6 ASI Output 1 ASI Out
7 Dimensions(L*W*H) 48.2x45.5x4.45cm
8 Function LCD keyboard operating, Web NMS support.(Chinese-English )
9 Power requirements AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz

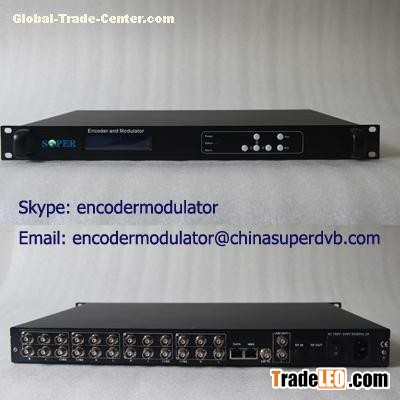

The CS-10801C series Channel MPEG-2/H.264 SD Encoders are our professional SD audio & video encoding and multiplexing device with powerful functionality. It has 8 independent channels of unbalanced audio & CVBS video input interfaces or SD-SDI input interfaces. It supports MPEG-2 and H.264 video encoding and MPEG-1 Audio layer 2, LC-AAC and HE-AAC audio encoding. Its each channel can reach an ultra low bit-rate. Moreover, it has an ASI input and can multiplex the input TS with the 8 encoded SPTS to generate a MPTS output. Skype: encodermodulator Email: encodermodulator@chinasuperdvb.com
