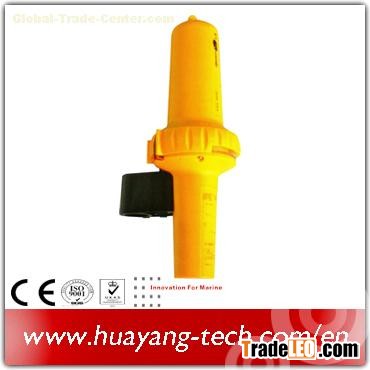

RADAR SART

Model: ESR-06

Product Overview: Search and rescue radar transponder (SART) is the positioner of global maritime distress and safety system (GMDSS). Performance indicators of the product meet relevant international standards. It possesses independent intellectual property right and has obtained the model approval from China Classification Society (CCS) (certificate number: CQ08T00015).

Function and Purpose:

Ø  It is capable of detecting the pulse action through the navigation radar installed on a search and rescue vessel or a helicopter. The signal from SART can indicate exact position of the SART on the fluorescent screen of navigation radar of the search and rescue vessel of the helicopter.

Ø  The survivor who holds a SART or a ship or boat in distress where a SART is equipped can discover the search and rescue vessel or helicopter that is approaching them.

Technical Features:

X-band small-signal detection technique, waveform generation technique, and high-efficiency power conversion technique are used to lower the power consumption. The product is characterized by good EMC, mature technology and reliable performance.

Technical Indicators:

l  Frequency range: 9,200MHz -9,500MHz.

l  Polarization: horizontal polarization.

l  Antenna: horizontal beam (omnidirectional) ＜±2dB; vertical beam ±12.5°.

l  Scan rate: 7.5±1us (forward oblique rise) .

0.4±0.1us (reverse recovery) .

l  Radiation power: ≥27dBmm.

l  Response delay: ≤0.5us.

l  Effective sensitivity: ≤－52dBm.

l  Recovery time: ≤10us.

l  Operating temperature: -20℃ -＋55℃.

l  Applications: Safe rescue system for marine use.

l  Dimensions (mm): 120（MAX）×L345.

l  Weight (kg): host ≤1.

l  Accessories: 10m floatable cable;

Support;

base;

≥1m long bearing rod.
