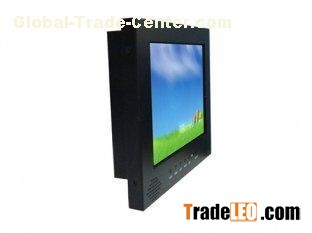

8 Inch 800x600 Pixels 6Bit / colors AC 100~240V 8.3W Industrial PCT Touchscreen Monitor
| Model Name | AMG-08IPAM01T1 |
| Viewable Size Image | 8" |
| Active Display Area (mm) | 162(H)x121.5(V) |
| Pixel Pitch (mm) | 0.2025(H)x0.2025(V) |
| Number of Pixels | 800x600 |
| Contrast Ratio | 500:1 |
| Display Color | 262, 144(6bit/colors) |
| Brightness (CD/m^2) | 270 CD/m^2 |
| Viewing Angle (CR >=10) | 140/115 |
| Synchronization Range | 60~75Hz |
| Recommended Resolution | 800x600@60Hz, 75Hz |
| Signal Connector | 15 pin D-sub |
| Power Source | AC 100~240V, Universal, ±10% |
| Power Consumption | 8.3W typical, normal operation |
| Power Management | VESA DPMS Compliant |
| Plug & Play | VESA DDC 1/2B |
| Optional Video Input | No |
| Optional DVI Input | Yes |
| Optional Touch Screen | Resistance |
|
|
|
