Brand:XKT
Model:XKT-1
MOQ:100 Pieces

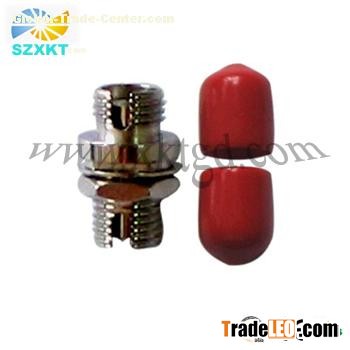

Fiber Optic Adapter
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
Hybrid fiber optic adapters offer a solution for hybrid applications where the two different kinds of fiber connectors or cable assemblies need to be linked with each other.
Features
l Low insertion loss
l High precision alignment
l Compact design
l With/without flange
l Choice of housing material and sleeve material
l Telcordia, ANSI,TIA/EIA,NTT and JIS compliance
Applications
l CATV
l Active device/Transceiver
l Telecommunication networks
l Metro
l Multimedia
l Data processing networks
l Test equipment
l Premise installations
l Gigabit Ethernet
l Video
Specifications
| Characteristics | Conditions | Value |
| Insertion Loss | | <0.20 |
| Mating Durability | 500Times | <0.20 |
| Temperature Cycling | -40℃ to +85 ℃(42cycles) | <0.20 |
| Humidity Cycling | 75℃,95%/336hr | <0.20 |
| Vibration | 10~~55Hz(2hr) | <0.20 |
| Impact | 1.5m drop,8times | <0.20 |
