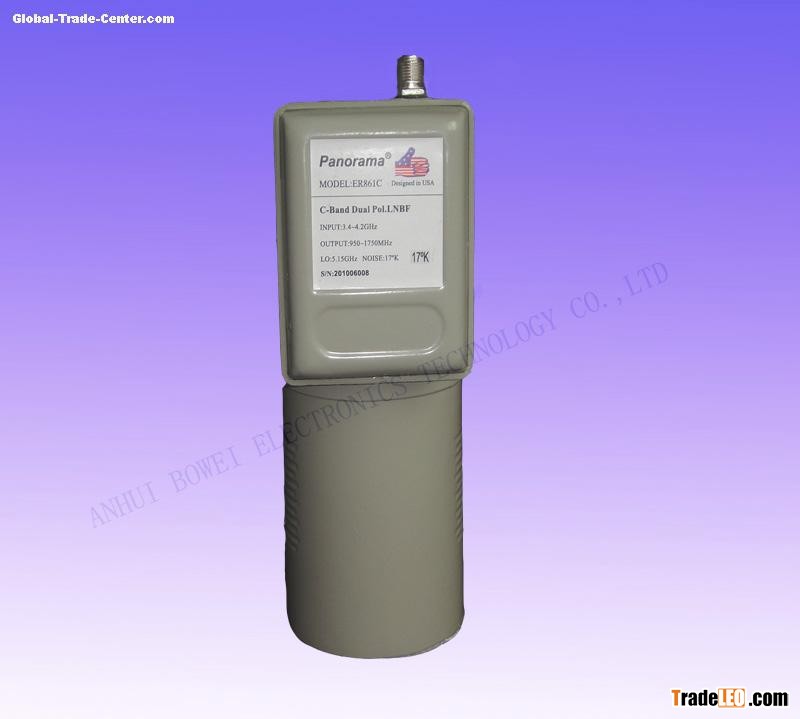

C-LNBF  SPECIFICATIONS

1.Input Frequency: 3.4t o 4.2GHz

  2.L.O. Frequency:5150MHz(±500 MHz@25centigrade)

3.Output Frequency:950 to 1750 MHz

4.L.O. Leakage Input Port: 45dBm

5.L.O. Stability: ±1.5MHz(-40centigrade to +70centigrade)

6.Noise Figure): <17°K typ

7.Conversion Gain: >55dB typ

8.Gain Flatness: ±1 dBm(max)

9.Intput VSWR: 2.5:1(max)

10.Output VSWR: 2.0:1(max)

11.Output Connector: F-female Connector

12.Output Impedance: 75Ω

13.Cross Polar Isolation: 20dB(min)

14.Image Rejection: 45 dB (min)

15.Phase Noise: -75dBc/Hz@10kHz(max)

16.Supply Voltage:

  1)11.5-14.0v(Vertical Polarization)

2)16.0-19.0v(Horizontal Polarization)

17.Operating Temperature: -40centigrade to +70centigrade

18.Storage Temperature: -40centigrade to+80centigrade

19.Relative Humidity: 0%-95%
