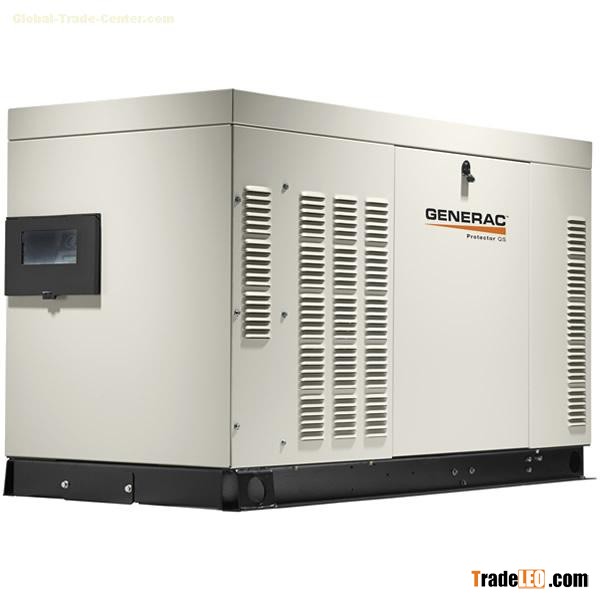

Premium-Grade Standby Generator
•Designed for luxury homes & small commercial buildings
•Runs off natural gas or LP fuel supply
Quiet-Test
•Low-speed exercise mode for quieter weekly tests; 61 dB @ 23'
Multi-Lingual Evolution
•Two-Line LCD Display provides service & maintenance intervals
Automotive-Style Engine
•Operates at half the speed of other engines (1800 vs 3600 RPM)
•Powerful Generac in-line 4-cylinder liquid-cooled engine
Sound Attenuated, Acoustically Designed Aluminum Enclosure
•Corrosion-resistant material ideal for salty air conditions
•Lockable, external viewing window for quick status check
Automatic Shutdown Safety Feature
•High coolant temp, low coolant, low oil pressure and overspeed
Mobile link (Sold Separately)
•Easily check generator status via computer, tablet or smartphone
Transfer Switch (Sold Separately)
•Customize your system based on your actual application
| Model | ||
| Model Number: | RG02224ANAX | |
| UPC: | 696471616323 | |
| Manufacturer: | Generac Protector | |
| Made in USA: | Yes | |
| Engine | ||
| Brand: | Generac 2.4L 4-Cylinder | |
| HP/CC: | 2400 cc | |
| Consumer Engine Warranty: | 5 Years | |
| Commercial Engine Warranty: | 5 Years | |
| Engine RPM: | 1800 RPM | |
| Low Oil alert/Shutdown: | Yes | |
| Product Specs | ||
| Voltage | 120/240 Single-Phase | |
| Frequency: | 60 Hertz | |
| Cooling System | Liquid Cooled | |
| Fuel Type | LP/Natural Gas | |
| NG Power Capacity | 22,000 Watts | |
| LP Power Capacity | 22,000 Watts | |
| NG Consumption (50% Load) | 190 ft³/hr (BTU: 190,000 BTU/HR) | |
| NG Consumption (100% Load) | 316 ft³/hr (BTU: 316,000 BTU/HR) | |
| LP Consumption (50% Load) | 2.1 gallons/hr (BTU: 190,575 BTU/HR) | |
| LP Consumption (100% Load) | 3.4 gallons/hr (BTU: 308,550 BTU/HR) | |
| Rated Amps: | 92 Amps @ 240 Volts (Single Phase) | |
| Decibel Rating @ 7m: | 61 Test (70 Run) db(A) | |
| Enclosure | Aluminum | |
| Mounting Pad | Concrete | |
| Transfer Switch: | Automatic | |
| Overview | ||
| Battery: | 525 CCA | |
| UL Listed | Yes | |
| Weight: | 843 Lbs. (382.38 kilograms) | |
| Dimensions: | 62.2"L x 30.6"W x 38.6"H (157.99 x 77.72 x 98.04 cm) | |
| Consumer Warranty: | 5 Years | |
| Commercial Warranty: | 5 Years |
