Brand:powerworld
Model:-
MOQ:1 Sets

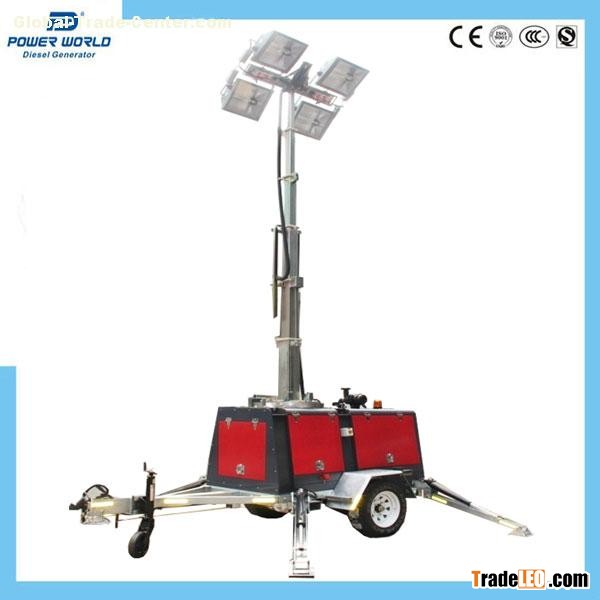

Power World Lighting tower is widely used in construction, Mining, Rental, Public facility repairing, events, accident handling, military and rescuing with satisfying the various requirements, high reliability, operating and maintenance easy.
“PWK” Series entire hydraulic system with electrical controlling make every operation to be fast and flexible, more safe and reliable. The six most shining floodlights or twelve LED can illuminate an area of 500m radius.
“PWT” Series is the traditional and pioneering type, It is competitive in price and Practical. It includes PWTL and PWTN types.
“PV” Series is the latest design and manufacture lighting tower with the vertical telescopic mast. The operation is simpler than other series lighting tower.And the smaller size make the transportation become more convenient.
“PCL” Series is a type of cute lighting towers with the vertical telescopic mast, it’s small size make it more convenient to transport.
Parameters
| Standard Equipment | PW-4000 | PW-P4000 | PW-P6000 |
| Length (mm) | 3220 (2100, the tow bar be retracted or detached) | ||
| Width (mm) | 1620 | 1620 | 1800 |
| Height (mm) | 2250 | 2250 | 2460 |
| Height (Mast be extended fully,m) | 9 | 9 | 9 |
| Weight (Dry, kg) | 1250 | 1250 | 1400 |
| Engine Model | POWER 380 | 403D-11G (Perkins) | 403D-15G (Perkins) |
| Frequency (Hz) | 50 | 50 | 50 |
| Speed (rpm) | 1500 | 1500 | 1500 |
| Continued Power (kva) | 7 | 7 | 10 |
| Number of Cylinders | 3 | ||
| Diesel Engine Characters | 4-cycle, in line, watercooled diesel | ||
| Combustion Type | Direct Injection | ||
| Engine Aspiration | Naturally Aspiration | ||
| Emission Level | Stager 3 | Stage 3 | |
| Alternator | Stamford or Leroy somer brushless & single phase | ||
| Rating Voltage (V) | 230 | ||
| Alternator Insulation | Class H | ||
| Fuel Tank Type | Bunded Tank | ||
| Type of Lights | metal Halide Floodlight Rectangle(E40/E39, GEWISS) | ||
| Number of Power of Lights | 4*1000W | 4*1000W | 6*1000W |
| Mast Extension | Hydraulic Operation or Manual Type | ||
| Mast Erection Time | <30 Seconds | ||
| Mast Rotation | 330° Manual Operation | ||
| Light Bar Tilt | 90° Electrically | ||
| Control System | Deepsea 3110 | ||
| Stabilizing Legs | Manually | ||
| Trailer Suspension& Braking System | Leaf Spring Axle (hexagoral rubber axle for 4HVP) with drum brake | ||
| Hitch & Tow Bar | Ball or O Ring & Stable Hitch in Height | ||
| Tire Rim Size | 14” | ||
| Output Sockets | 1 PCS (230V, 10A) | ||
| Acoustic Pressure | 65dB(A) at 7 meters away | ||
| Max. Load Quantity in a 40’ container (sets) | 7 | ||
