2) Alternator:(Stamford, Leroy Somer, Marathon, ENGGA brushless alternator) 3 Phase 4 Wire, Brushless, H class Insulation, Self-Exited ,IP23 Protection, AVR regulation.

3)Frequency: 50 & 60Hz

4) 3 Phase 4 Wire

5) Speed: 1500rpm & 1800rpm

6) Three Phase Voltage Available: 208V / 220V / 230V / 240V / 380V / 390V / 400V / 415V / 440V / 460V / 480V .

7) Key start panel control system as standard, digital auto-start panel is optional

8) 8-hour operation base tank

9) All generating sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load,100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail,emergency stop)

Accessories:
1)Standard accessories: Standard 40 radiator mounted on skid ,Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit ,operation manual and document , Primary muffler
Installation device:expand shock absorption tie-in, shock absorption pad,  wire between gen-set and storage battery, flexible
Operating manual.
Gen-sets ex-factory test report .
Quality certificate .
Gen-sets equipped with dual flexible fuel union pipe .
base fuel tank(Lasts 8~10 hours continuously)
Deepsea 5110 control panel
VDO oil & Fuel sensors
MCCB

2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.

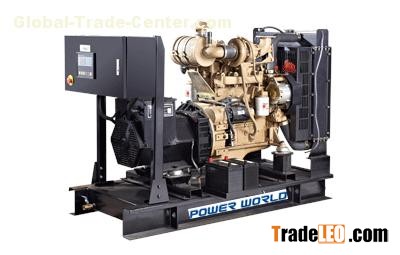

50hz~60hz Cummins1035kw  diesel generator set

Warranty policy:

Guarantee for 12 months or 1000-1500 hours whichever reach first from ex-factory date. During the guarantee period, Power World will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Power World provides cost spare parts maintenance of gensets.

Soundproof/Silent Box:

1. Excellent ventilation

2. Oil tank mounted on base frame for 8 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80DBA / 7m<70DBA

Control Panel:

1. Automatic control panel (AMF), LCD display

2. Four protection systems

3. Emergency stop

Optional:

1. Trailer type

2. Soundproof / water proof

3. ATS (automatic transfer switch)

4. Parallel system

5. Remote system

Our Advantages:

1. Solve your technical problems in 24 hours and provide international warranty service for engines

2. Design the appearance form according to customers’ request

3. Four hours testing before out factory and CCIB inspection
