Specifications:

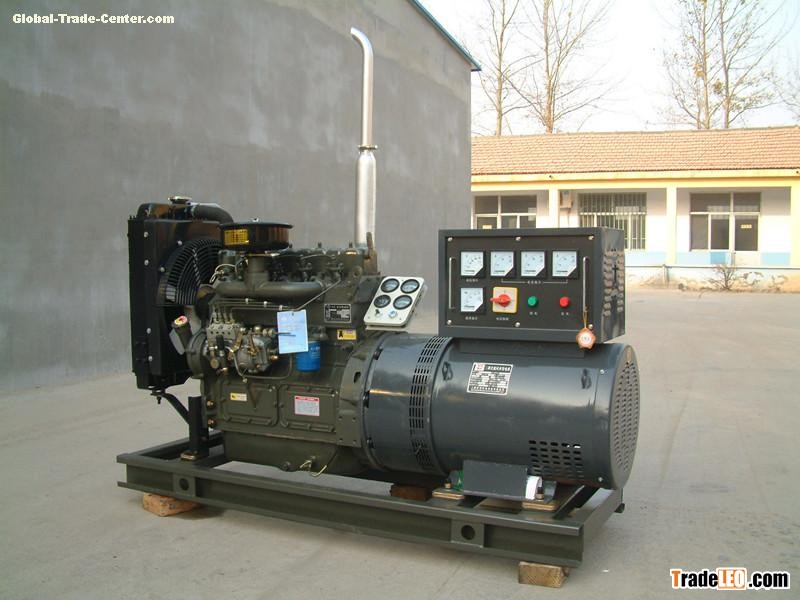

Diesel generator set models:HK30GF
Rated Power(KW):30kw
Diesel Engine :
Manufactuier:WEIFANG HUAKUN
Type :K4100D
Rated Power: 31KW
Number Of Cylinders :4
diameter*Stroke(mm): 100*115
Form :In-line、Cooling、Four Stroke
Air Intake Method : Naturally Aspirated
Combustion System :Turbojet
Discharge :3.61
BSFC(g/kw.h): 258
Cooling System: Forced Water Cooling
Starting Type: Electric Start
Lubrication Mode: Pressure And Splash Lubrication
Generator :
Manufactuier :STF-Shanghai
Rated Power:(KW) 30
Rated Voltage(V): 230/400
Rated Current(A): 54
Rated Capacity(KVA): 37.5
Frequency(Hz): 50
Speed(RPM/MIN) : 1500
Power-Factor :0.8
Number Of Phases : Three Phase And Four Wire
Protection Grade: IP21
Size(L*W*H)(mm): 1700*690*1150
Weight(KG):720
