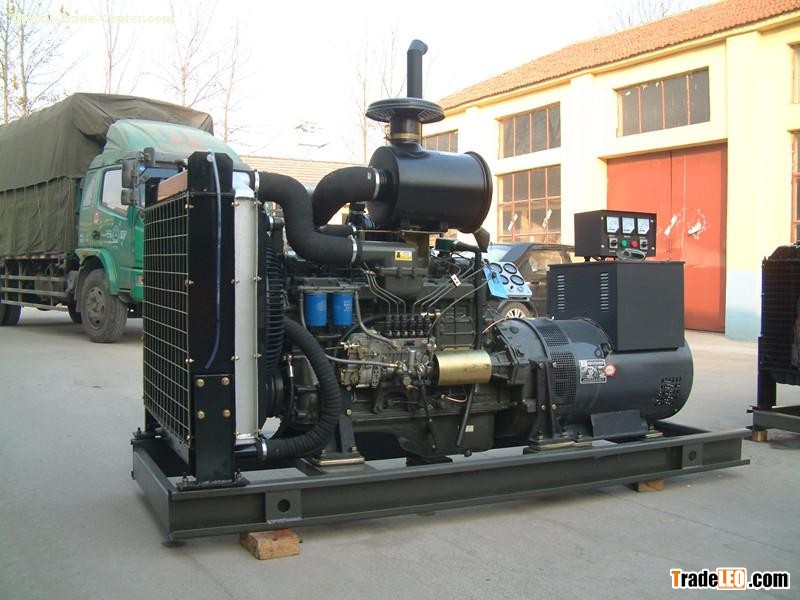

Diesel generator set models:HK150GF
Rated Power(KW):150kw
Diesel Engine :
Manufactuier:WEIFANG HUAKUN
Type :R6113ZLD
Rated Power: 156KW
Number Of Cylinders :6
diameter*Stroke(mm):113*125
Form :In-line Cooling Four Stroke
Air Intake Method : turbocharged medium-cooled
Combustion System :Direct Injection
Discharge :7.52
BSFC(g/kw.h):218
Cooling System: Forced Water Cooling
Starting Type: Electric Start
Lubrication Mode: Pressure And Splash Lubrication
Generator :
Manufactuier :STF-Shanghai
Rated Power:(KW) 150
Rated Voltage(V): 230/400
Rated Current(A): 270
Rated Capacity(KVA):187.5
Frequency(Hz): 50
Speed(RPM/MIN) : 1500
Power-Factor :0.8
Number Of Phases : Three Phase And Four Wire
Protection Grade: IP21
Size(L*W*H)(mm):2550*900*1500
Weight(KG):1500
