CNC Router kits 3Axis CNC 1600OZ-IN & 3256OZ Wantai Spindle Stepper Motor Grind Mill

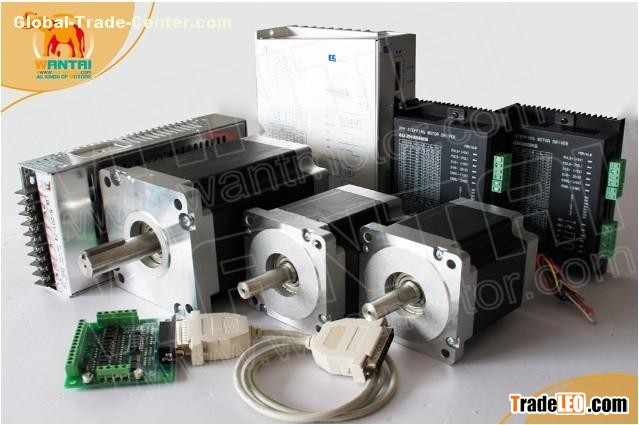

Product No.: N2012611173158

This item includes:

2 PCS Nema 34 Stepper Motor with Single shaft 1600oz-in holding torque,

1 PC Nema 42 Stepper Motor with Single shaft 3256oz-in Holding torque,

2 PCS Stepper Driver DQ860MA with 7.8A replacing MD882,

1 PC Stepper Driver DQ2272 With 8.0A Peak current,7.0A rated current, 110-220VAC,

200 Microstep,

2 PCS Power Supply for 350W,60VDC,5.9A,

1 PC Breakout Board,

1 PC DB25 Cable

Note: Alternating current on driver to connect the power,there is no need for any power supply to convert.

website:

http://www.wantmotor.com

link: http://www.dhgate.com/wholesale/products/ff8080813bvalue="45" tcsc="0" unitname="a" w:st="on">45a570013bvalue="5" tcsc="0" unitname="F" w:st="on">5f450b8bvalue="4" tcsc="0" unitname="C" w:st="on">04c8.html#prod-seller-store

1, Stepper Motor

1, Technical Specifications

Part No.: 85BYGH450C-012

frame Size: NEMA34

Step Angle: 1.8 degree

Voltage: 5.7V

Current: 3.5A/phase

Resistance: 1.9 Ohm/phase

Inductance: 22 mH/phase

Holding torque: 11.3N.m 1600oz-in

Rotor inertia: 3600g-cm2

Number of wire leads:4

Weight: 5 kg

Length: 151mm

Note: Nema 34 Stepper Motor with 1600oz-in holding torque on single shaft, front shaft length is

37mm with 25mm flats length, flats length, the diameter for motor shaft is 14mm.

RED A+

GREEN A-

YELLOW B+

BLUE B-

2, Stepper Motor Driver

Introduction

The DQ860MA is an economical microstepping driver based on patented technology of

Wantai Motor.It is suitable for driving 2-phase 4-phase hybrid stepping motors.

By using the advanced bipolar constant-current shopping technique ,it can

output more speed and torque from the same motor,compared

with traditional drivers ,such as L/R drivers .Its 3-state current control

technology allows coil currents

to be well controlled and with relatively small

current ripple,therefore less motor heating is achieved.

3,1PC Nema 42 Stepper Motor of 4200OZ-In Holding Torque,

Technical Specifications

Part No.: 110BYGH150-001

frame Size: NEMA42

Step Angle: 1.8 degree

Voltage: 5.44VDC

Current: 6.8A/phase

Resistance: 0.8Ohm/phase

Inductance: 15mH/phase

Holding torque: 230 Kg-cm 3256oz-in

Rotor inertia: 1090g-cm2

Number of wire leads: 4

Weight: 8.4kg

Length: 150mm

Shaft Diameter: 19mm with keyway

Please tell us if you need Double shaft or single shaft, we can manufacture both

for you. If you need Double shaft, please tell us your requirements for length

of front and rear shaft, as well as the diameter. So that we can offer you the

quite good products, thanks!

if you need the drawing or the torque of the motor, please email me:

stone1818@live.com

, so that I can send the informaiton to you.

4, Stepper Motor Driver DQ2722M,

110-220VAC, 7.0A, 200Microstep

The DQ2722M is full digital 2 phase stepper driver based on DSP control.

The drive voltage of which is from 110V to 220VAC. It is designed for use

with the 2 phase hybrid stepper motor of all kinds with 86mm to 130mm

outside diameter,regulated phase current 1.2A to 7.0A.

The circuit that it adopts is similar to the circuit of servo control

which enables the motor run smoothly without noise

and vibration. The highest micro step is 60000ppr.

It is widely used in middle and big size numerical control devices

such as curving machine, CNC machine, computer embroider machine,

packing machine and etc.

FEATURES

l High performance, low price

l 16 channels constant angle, constant torque micro steps, highest micro step: 40000ppr

l Highest response frequency: 200Kpps

l Current of winding will be reduced by approximately 50% when no step pulse

command is received for 0.1 second

l Opto-isolated signal I/O

l Drive current is adjustable in 16 channels from 1.2A/phase to 7.0A/phase

l Single power supply from 110V to 220VAC

l Phase terminal memory function (motor phase terminal is memorized after input pulse

train stopping 5s and it is recovered when stepper driver power on or signal MF changes from

low level to high level)

Company name:Changzhou Wantai Electrical Appliance Co., Ltd
