Brand:sunrise
Model:86HS(NEMA34) 1.8°
MOQ:-0 -
Changzhou Sunrise Electric Motor Company concentrates on products of the most urgent demand on domestic and foreign markets, while preparing our production for the introduction of other products being interesting in future.

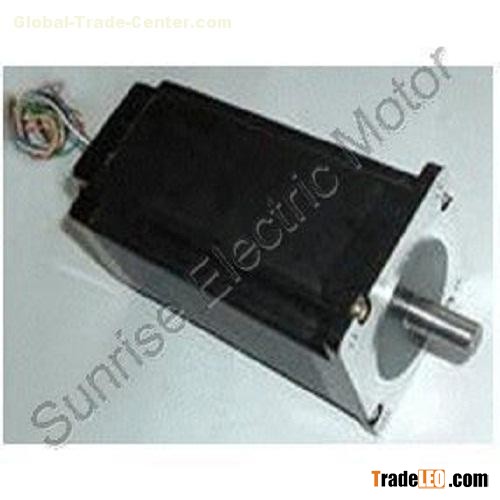

Specifications of 3-Phase Hybrid stepping motor 86HS(NEMA34) 1.8°:
| Model of stepper motor | Holding Torque±10% | Current/ Phase (A) | Resistance/ Phase ±10% | Inductance/ Phase ±20% | Rated Torque | Rotor Intertia (Kg cm2) | Length (mm) | Weight (Kg) |
| 86HS3A70-506 | 2.26 | 5.0 | 0.95 | 2.3 | 2 | 1.17 | 71 | 1.7 |
| 86HS3A70-206 | 4.52 | 2.0 | 6.0 | 25 | 4 | 2.34 | 103 | 2.85 |
| 86HS3A105-506 | 4.52 | 5.0 | 1.2 | 4.2 | 4 | 2.34 | 103 | 2.85 |
| 86HS3A135-506 | 6.78 | 2.3 | 7.3 | 36 | 6 | 3.51 | 135 | 4 |
| 86HS3A70-506 | 6.78 | 5.0 | 1.65 | 6 | 6 | 3.51 | 135 | 4 |
Figure
Wiring Diagram
