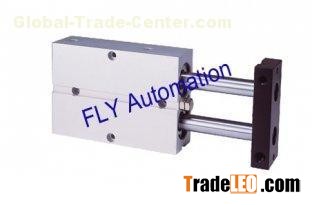

TN double shaft Pneumatic cylinder, Φ10mm, Φ16mm, Φ20mm, Φ25mm, Φ32mm
| Bore(mm) | 10 | 16 | 20 | 25 | 32 |
| Motion Pattern | Double action | ||||
| Working Medium | Air | ||||
| Operating Voltage Range | 1~9kgf/cm2 | ||||
| Ensured Pressure Resistance | 10.5kgf/cm2 | ||||
| Operating Temperature Range | -5~+70 | ||||
| Operating Speed Range | 100~500mm/s | ||||
| Adjustable Stroke | -10~0mm | ||||
| Cushion Type | Adjustable Cushion | ||||
| Non-rotating Precision | 0.4 | 0.3 | |||
| Port Size | M5×0.8 | G1/8" | |||
| Dimensions sheet-10TN | ||||||||||||||||||||
| Bore size | A | B | C | D | E | |||||||||||||||
| Item | 10 | 20 | 30 | 40 | 50 | 60 | 70 | |||||||||||||
| 10 | Contact Infomation
