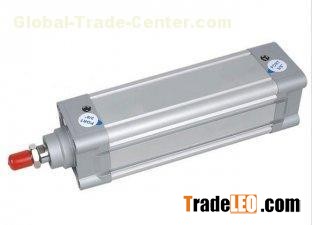

SI63X150 Electric Double Acting ISO6431 Pneumatic Air Cylinders
Type: SI63X150
1.We have gained the CE and ISO 9001 certification.
2.We have good after-sales service.
3.Our products are high quality and competitive price.
4.If you send us the drawing and picture, we can customise the goods for you!
Welcome cooperate with new and old customers future!
5.Detailed Specification:
| Bore size(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | |
| Action | Double acting | ||||||||
| Fluid | Air | ||||||||
| Mounting type | SI | Basic FA FB CA CB LB TC TC-M | |||||||
| SID | Basic FA FB LB TC TC-M | ||||||||
| SIJ | Basic FA FB LB TC TC-M | ||||||||
| Pressure range | 1~9.0Kg/cm2 | ||||||||
| Proof pressure | 13.5Kg/cm2 | ||||||||
| Temperature range | 0~70oC | ||||||||
| Speed range | 50~800mm/s | ||||||||
| Cushion type | Variable cushion | ||||||||
| Adjustable cushion stroke | 20mm | 26mm | |||||||
| Port size | G1/8" | G1/4" | G3/8" | G1/2" | |||||
