Brand:AIE
Model:-
MOQ:-0 -
Send Inquiry

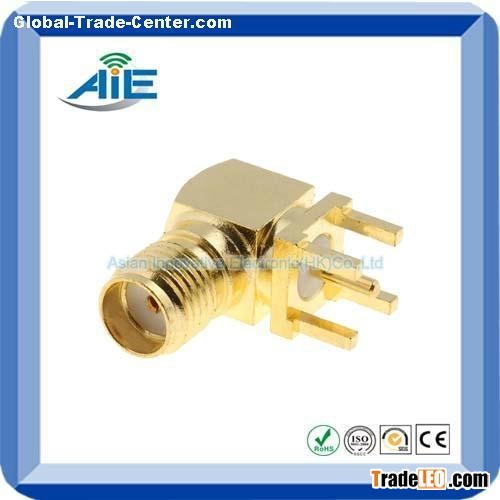

Model AIE-SMAWF-PCB Major Technical Characteristics Type SMA right angle female for PCB Impedance 50Ω Frequency Range DC～12.4GHz(Semi-Rigid Cable DC-18GHz) Center conductor retention force ≥0.28 N Insertion Loss ≤0.15dB/6GHz Voltage Standing Wave Ratio Straight Flexible Cable ≤1.10+0.02f Semi-Rigid Cable≤ 1.07+0.018f Right angle Flexible Cable ≤1.20+0.03f Semi-Rigid Cable≤1.17+0.02f Durability(mating) ≥500(cycles) Cable PCB Material & Plating Body Brass Gold plated Pin contact Brass Gold plated Socket contact Beryllium-copper Customized) Gold plated Resilient contact Beryllium-copper Gold plated Insulator PTFE Crimp ferrule Copper alloy Nickel or gold plated O-ring sealing 6146 silicone rubber Price Terms︰ EX-WORKPayment Terms︰ TT/WU/PAYPALPacking︰ 100PCS/BagLead Time︰ 3 DAYS AFTER PAYMENTSKU︰ 100000custom_attr1︰ GOLDcustom_attr2︰ for pcb
