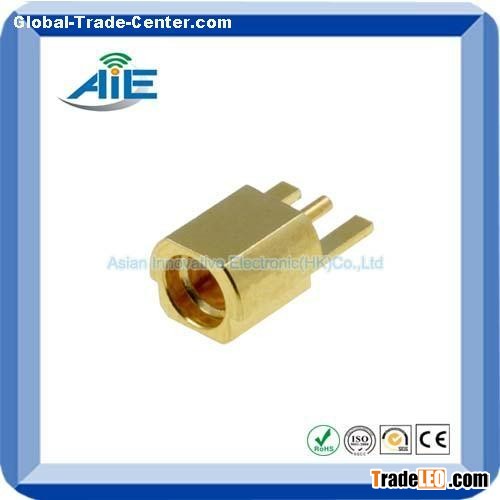

Model AIE-MMCX-FJ-P02 Major Technical Characteristics Type MCX straight female for PCB Impedance 50Ω Frequency Range DC～6GHz Center conductor retention force ≥0.28N Insertion Loss 0.18dB（1GHz） Voltage Standing Wave Ratio Straight ≤1.20/1GHz Right angle ≤1.45/1GHz Durability(mating) ≥500(cycles) Cable PCB Material & Plating Body Brass Gold plated Pin contact Tin bronze Gold plated Resilient contact Beryllium-copper Gold plated Socket contact Beryllium or tin bronze Gold plated Insulator PTFE Crimp ferrule Copper alloy Nickel or gold plated O-ring sealing 6146 silicone rubber Price Terms︰ EX-WORK Payment Terms︰ TT/WU/PAYPAL Packing︰ 1000PCS/BOX Lead Time︰ 7-10 DAYS AFTER PAYMENT
