Brand:CROP
Model:PCT series
MOQ:500 Pieces

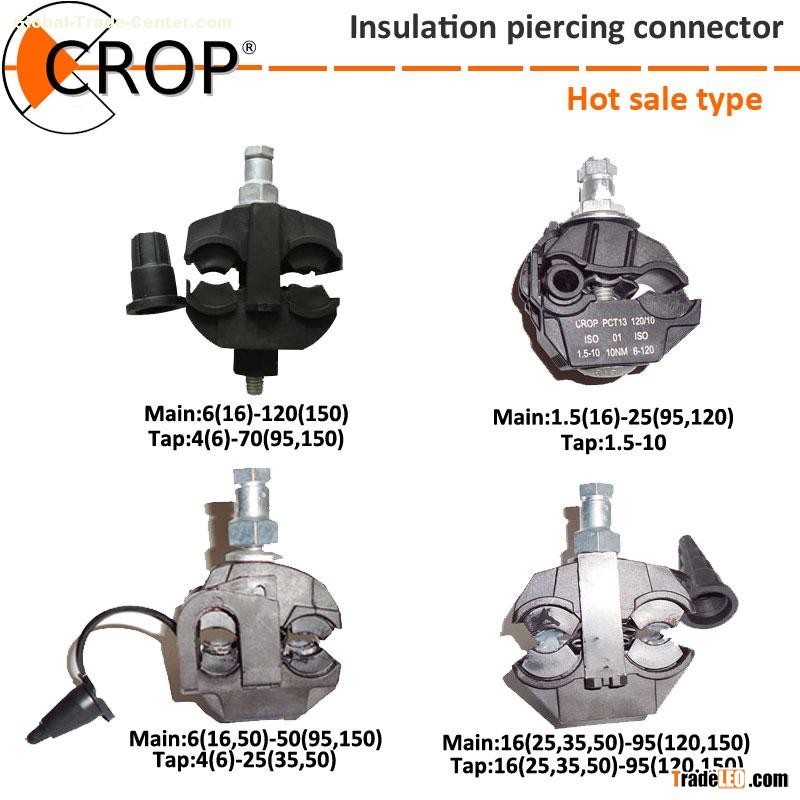

ABC accessories/ IPC insulation piercing connectors
PRODUCT DEscriptION:
Purpose of Insulation piercing connectors(IPC) is to connect main and one(PC13),two(PC24) tap conducor's of section,how is written on IPC body.Type without letter B serves to connect isolated conductors,with letter B bare conductors.IPC for one tap conductor is equipped with cable termination cap PCEC16/120, for two output wires-no cap.
IPC consists from two glass-fiber reinforced plastic parts,which are fited with two brass tinned teeth's,which are coated with UV-curing silica grease and the teeth are fitted with rubber insulation.This set is associated with the bolt,nut and pinch fixation segment.The terminals marked T are equipped with tear head. The lower part of the clamp is designed to be hold by the key 17 and the ventilation chamber,providing optimal ventilation of IPC.
Product can be also used as tap connector inside low boltage boxes.
PRODUCT RANGE:
| Model number | Cable type | Section |
| PCT13 120/70 | RE/RM,isolated to isolated,Cu/Al | Main:16-120 sqmm Tap:4-70 sqmm |
| PCT13 150/150 | RE/RM,isolated to isolated,Cu/Al | Main:6-150 sqmm Tap:6-150 sqmm |
