Brand:EASE
Model:-
MOQ:-0 -
Send Inquiry
| SPECIFICATIONS | |

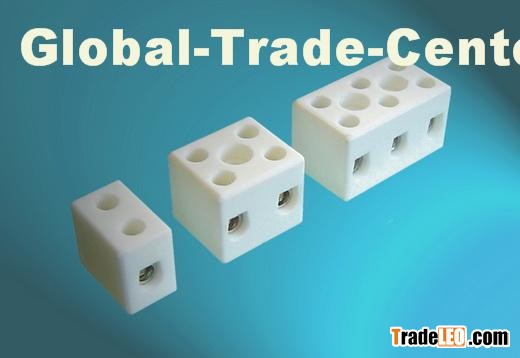

| INSERTS: | NICKEL PLATED BRASS |
| HOUSING: | PORCELAIN (GLAZED OPTION) |
| TEMP.: | 800℃ (HOUSING), 350℃ (INSERTS) |
| SCREWS: | GALVANISED STEEL |
| STANDARD: | CE (BS EN 60998) |
| COLOR: | WHITE |
| FEATURE: | HARD & SOLID VERY HIGH TEMPERATURE NON-INFLAMMABLE RESISTANT TO CHEMICALS |
| EASE CODE | CROSS SECTION | CURRENT RANGE | RATED VOLTAGE | DIMENSIONS (mm) | ||||||
| W | L | Φ1 | Φ2 | D | d | H | ||||
| CPO-5A-1P | 4 mm2 | 5-32A | 450V | 13 | 12 | 3.2 | - | - | 8 | 16 |
| CPO-5A-2P | 4 mm2 | 5-32A | 450V | 18 | 21 | 3.2 | 4.5 | 12 | 8 | 16 |
| CPO-5A-3P | 4 mm2 | 5-32A | 450V | 18 | 33 | 3.2 | 4.5 | 12 | 8 | 16 |
| CPO-15A-1P | 10 mm2 | 15-57A | 450V | 21 | 13 | 4.3 | - | - | 10 | 20 |
| CPO-15A-2P | 10 mm2 | 15-57A | 450V | 21 | 24 | 4.3 | 4.8 | 14 | 10 | 20 |
| CPO-15A-3P | 10 mm2 | 15-57A | 450V | 21 | 36 | 4.3 | 4.8 | 14 | 10 | 20 |
| CPO-30A-1P | 16 mm2 | 30-76A | 450V | 27 | 15 | 6.1 | - | - | 12 | 22 |
| CPO-30A-2P | 16 mm2 | 30-76A | 450V | 27 | 31 | 6.1 | 5.0 | 17 | 12 | 22 |
| CPO-30A-3P | 16 mm2 | 30-76A | 450V | 27 | 48 | 6.1 | 5.0 | 17 | 12 | 22 |
| Cross Section: | rated for rigid wire and cables (if for flexible wire, it should be reduced one-step, i.e. 6mm2 is 4mm2) Φ1 wire entry hole diameter Φ2 fixing hole diameter | |||||||||
