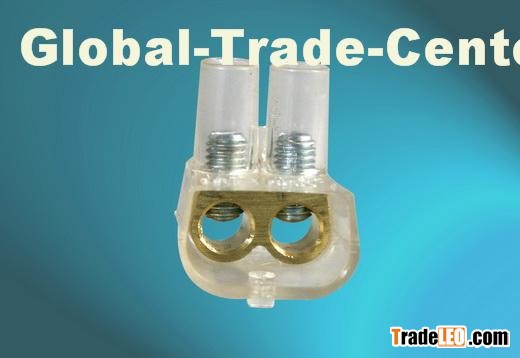

Brand:EASE
Model:COE -F2
MOQ:-0 -
Send Inquiry
| PECIFICATIONS | |
| INSERTS: | BRASS |
| HOUSING: | POLYCARBonATE (PC) |
| TEMP.: | 85℃ MAX 130℃ |
| SCREWS: | GALVANISED STEEL |
| STANDARD: | IMQ & CE |
| COLOR: | CLEAR |
| FEATURE: | RIGID & EASY CUT FLAME RETARDANT ALL SCREWS ARE CAPTIVE & RAISED FOR EASY WIRING IP20 |
| EASE CODE | POLES | CROSS SECTION | CURRENT RANGE | RATED VOLTAGE | DIMENSIONS (mm) | |||||
| W | Φ1 | Φ2 | D | d | H | |||||
| COE-F2-1.5 | 2 | 1.5 mm2 | 17.5A | 380V | 15.0 | 3.1 | 4.0 | 12.0 | 4.5 | 13.0 |
| COE-F2-6 | 2 | 6 mm2 | 41A | 380V | 18.0 | 3.7 | 5.0 | 15.0 | 6.0 | 16.0 |
| COE-F2-16 | 2 | 16 mm2 | 76A | 500V | 22.5 | 5.5 | 5.5 | 20.0 | 8.0 | 25.0 |
| COE-F2-25 | 2 | 25 mm2 | 101A | 500V | 26.0 | 7.0 | 6.5 | 25.0 | 10.0 | 24.5 |
| COE-F2-35 | 2 | 35 mm2 | 125A | 500V | 31.0 | 9.0 | 8.5 | 31.5 | 13.0 | 33.0 |
| Cross Section: | rated for flexible cable and wire Φ1 wire entry hole diameter Φ2 fixing hole diameter | |||||||||
