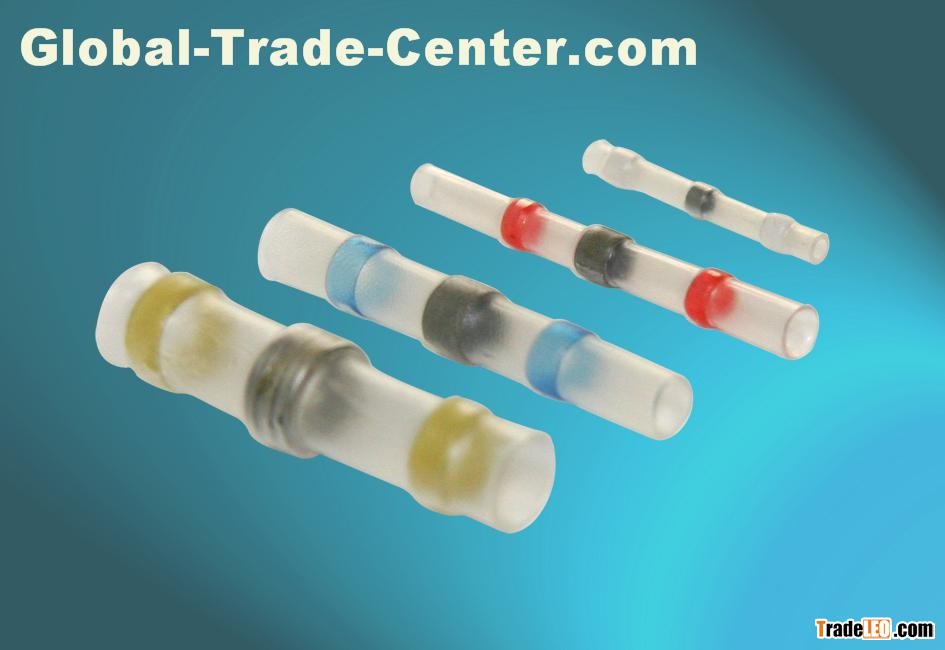

| SPECIFICATIONS | |
| MATERIAL: | (INSULATION) HEAT-SHRINKABLE POLYOLEFIN, (SOLDER) LEAD-FREE TIN, (RINGS) MELTABLE THERMALLY STABILIZED THERMOPLASTIC. |
| SOLDER MELTING TEMP: | 138℃, FLUX ACTIVATED ROSIN |
| WORK TEMP: | -55℃ to +125℃ |
| SHRINKING TEMP: | >200℃ |
| DIELECTRIC STRENGTH: | 2kV |
| PROTECTION TYPE: | IP 67 |
| EASE CODE | D MIN. | A MIN. | L MAX. | WIRE RANGE | COLOR |
| TM-HS-SB-0.5 | 1.7 | 15.2 | 26.0 | 0.1-0.5mm2 | WHITE |
| TM-HS-SB-1.5 | 2.7 | 15.2 | 40.0 | 0.5-1.5mm2 | RED |
| TM-HS-SB-2.5 | 4.5 | 15.2 | 40.0 | 1.5-2.5mm2 | BLUE |
| TM-HS-SB-6.0 | 6.0 | 15.2 | 40.0 | 2.5-6.0mm2 | YELLOW |
